OMRON OMRON E5EC-CR2ASM-804 Price

Size: 48 x 24mm.
Control output 1: voltage output (SSR driver).
Control output 2:--.
Auxiliary output: 1 points.
Power supply voltage: AC/DC24V.
Terminal type: PUSH-IN fastening terminal table type.
Input category: full range multi input.
Heater break, SSR fault detection function: -.
Communication: -.
Event input: -.

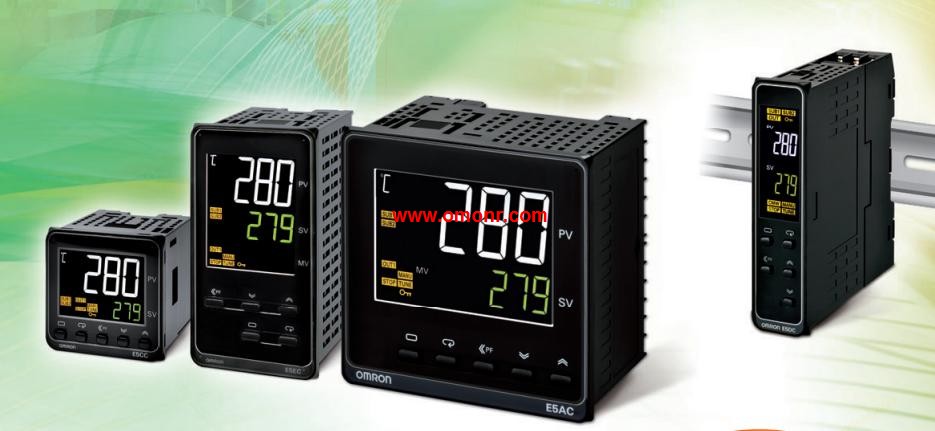

A small body of 48 * 24mm specifications on the condensation operation, E5_C series of high performance E5EC-CR2ASM-804
Slender body width 48mm * 24mm * 90mm high depth,
The most suitable for small devices / physical and chemical equipment, etc..
Although the small size, but also through the character of the high 10.5mm white PV display to achieve high recognition.
The terminal stage is adopted to disassemble and assemble the structure, which improves the maintenance performance.
The connection method can be selected from a screw terminal and a PUSH-IN fastening terminal.
High speed sampling of 50ms is realized.
Easy to connect with PLC through no program communication.
The use of electric communication conversion Village (sold separately) connected to the computer after,
No power connection can be set.
It can be easily set by CS-Thermo (sold separately). Refer to Safety Precautions for All Power Controllers.
Used in Combination with the G3PA to.
Enable High-precision Temperature Contro.
Use cycle control to achieve power control with little noise.
Used in combination with the G3PA to connect to single- and,
three-phase loads.
Three types of input method available: Internal adjuster,
external adjuster, or DC signals from 4 to 20 mA.
Streamline design. Both DIN track mounting and screw,
mounting possible.
Use linking terminals for close mounting of the G3PA.
Built-in isolation transformer.
Power supply range: 100 to 240 V. Output: DPDT.
Lighting: LED (with built-in reduced-voltage lighting function).
Operating voltage: 100/110 VAC/VDC.
Pushbutton colorsymbol: R: red, Y: yellow; PY: pure yellow
G: green, A: blue; W: white; PW: pure white.
Item: Momentary operation (Self-resetting).
Separate Construction with.
Cylindrical 16-dia. Body.
Miniature design of 28.5 mm, the smallest class in the industry.
Detachable Switch.
The same contacts can be used for both standard loads and microloads.
Easy-to-wire terminal arrangement.
Certified for EN 60947-5-1.
E5EC-CR2ASM-804 Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=E5EC-CR2ASM-804&select=5
