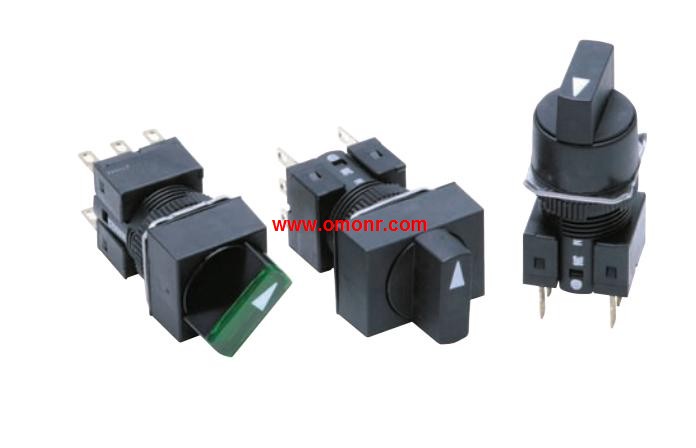

A165S-T3M-2 Knob-type Selector Switch

OMRON A165S-T3M-2 Manual And Instructions
A165S-T3M-2 datasheetPDF datasheet

OMRON A165S-T3M-2 Product information and technical parameters:
Brand: OMRON
Name: Knob-type Selector Switch
Model: A165S-T3M-2
No. of notches: 3 notches.
Output: DPDT.
Reset method: Manual.
Lighting method: Non-lighted.
Separate Construction with Cylindrical.
16-dia. Body.
Same separate construction as the A16-series Pushbuttons with,
Miniature Design of 28.5 mm.
The same contacts can be used for both standard loads and,
microloads.
Oil-resistant IP65 models,
Conforms to EN60947-5-1.

Output: SPDT.
Lighting: LED.
Operating voltage: 5 VDC.
Pushbutton colorsymbol: R: red, Y: yellow; PY: pure yellow
G: green, A: blue; W: white; B: black *2.
Item: Momentary operation (Self-resetting).
Separate Construction with.
Cylindrical 16-dia. Body.
Miniature design of 28.5 mm, the smallest class in the industry A165S-T3M-2.
Detachable Switch.
The same contacts can be used for both standard loads and microloads A165S-T3M-2
Easy-to-wire terminal arrangement.
Certified for EN 60947-5-1. Type: no wing.
Type of drive shaft: inclined piston type.
Outlet hole: 4.
Even number: 5.
Rubber material: NBR.
Head and body integration, strength and sealing performance is better, mechanical life is also significantly increased (5 million times) A165S-T3M-2.
The most suitable for a variety of machine tools, automatic production line of the order control.
With drain holes, oil and water can be discharged after immersion. Appearance: Round/Projection type LED voltage-reduction lighting,
(without Voltage Reduction Unit)A22L-T.
Output: SPST-NO + SPST-NO.
Lighting: LED.
Operating voltage: 100 VAC.
Operation: Momentary operation (self-resetting) A165S-T3M-2.
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit.
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Appearance: Rectangular (M16-J).
Lighting: Incandescent lamp, 24 VAC/VDC.
Degree of protection: IP65 oil-resistant.
Display color symbol: R: red; Y: yellow; G: green; A: blue;
W: white; PY: pure yellow; PW: pure white.
Cylindrical 16-dia. Indicator.
Same basic design as the A16 Pushbutton Switch. Appearance: Knob-type Selector Switch A22W,
LED voltage-reduction lighting (without Voltage Reduction Unit).
Number of notches: 3 notches.
Resetting method: Automatic.
Output: SPST-NC + SPST-NC.
Operating voltage: 100 VAC.
Illumination color: R (red); Y (yellow); G (green); A (blue).
IInstall in 22-dia A165S-T3M-2. or 25-dia. Panel Cutout.
Lever for easily mounting and removing the Switch Unit.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mountted using either open-type (fork-type) or closed-type,
(round-type) crimp terminals A165S-T3M-2.
IP65 oil resistance (non-lighted models).
IP65 (lighted models).
