>> C200HE-CPU11-E CPU Unit

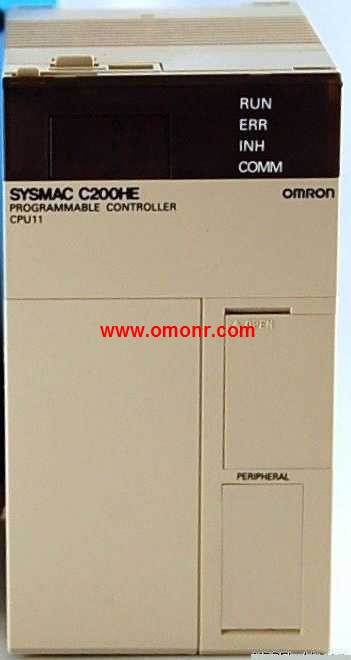

C200HE-CPU11-E CPU Unit
OMRON C200HE-CPU11-E Manual And Instructions
C200HE-CPU11-E HOST CONNECTION MANUAL
OMRON C200HE-CPU11-E Product information and technical parameters：
Brand: OMRON
Name: CPU Unit
Model: C200HE-CPU11-E
UM: 3.2K words.
DM: 4K words.
EM: --.
Instruction processing time (basic instructions): 0.3 µ.s min.
No. of I/O points: 640 points.
Max. no.of con-necting Expansion I/O Racks: 2 Racks.
Max. no. of connecting High-density I/O Units(i.e., Group-2): Unavailable.
Max. no. of con-necting Special I/O Units: 10.
RS-232C: NO.
