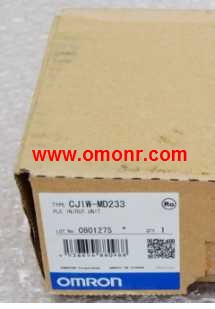

CJ1W-MD233 Mixed I/O Units
OMRON CJ1W-MD233 Manual And Instructions
CJ1W-MD233 datasheetPDF datasheet
CJ1W-MD233 HardwareOperation Manual
OMRON CJ1W-MD233 Product information and technical parameters：
Brand: OMRON
Name: Mixed I/O Units
Model: CJ1W-MD233
Unit type: CJ1 Basic I/O Units.
Product name: DC Input/Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 16 inputs, 16 outputs;
Input voltage,Input current,
Maximum switching capacity, 24VDC, 7mA,
12 to 24 VDC, 0.5 A;
Commons, 16 points, 1 common;
External connection, MIL connector.
No. of words allocated: 2 words.
Current consumption: 5V, 0.13A; 24V, --.
Standards: UC1, N, CE.
A Wide Range of Basic Mixed,
I/O Units for Different Applications,
and Wiring Methods.
One Mixed I/O Unit has connectors for,
both inputs and outputs.
Use Mixed I/O Units to easily ,
build space-saving systems.
