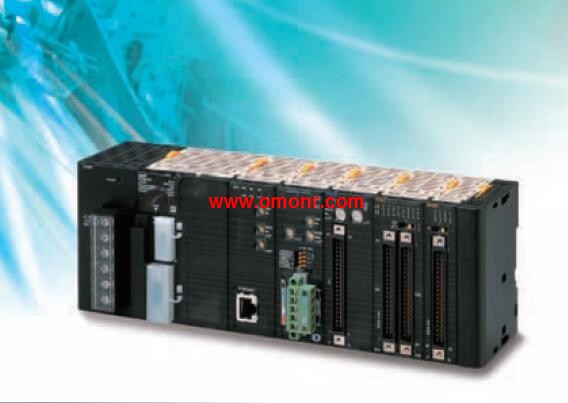

CJ1W-NC133 Position Control Units

OMRON CJ1W-NC133 Manual And Instructions
CJ1W-NC133 datasheetPDF datasheet
CJ1W-NC133 PROGRAMMING MANUAL

OMRON CJ1W-NC133 Product information and technical parameters:
Brand: OMRON
Name: Position Control Units
Model: CJ1W-NC133
Unit classification: CJ1 Special I/O Units.
name: Position control unit.
Specifications; Control method/Control,
output interface:Open-loop control by pulse,
train output/Line-driver output;
Number of control axes : 1 axis.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.25A; 24V, --.
Standards: UC1, CE.
High-speed, High-precision positioning,
with 1, 2, or 4 axes.
Versatile functions and superb performance,
enable the construction of compact,
high-performance machines.
With its ultra-compact size of 31 × 90mm (W×H),
this highly space-efficient Position Control Unit,
(PCU) enables up to 4 axes of motor control.

Unit type: CJ1 Basic I/O Units.
Product name: TTL I/O Units.
Specifications: Output type, --;
I/O points, 32 inputs, 32 outputs;
Input voltage,Input current, 5VDC, 35mA,
5VDC, 35mA;
Commons, 16 points, 1 common;
External connection, MIL connector.
No. of words allocated: 4 words.
Current consumption: 5V, 0 CJ1W-NC133. 19A; 24V, --.
Standards: UC1, N, CE.
A Wide Range of Basic Mixed,
I/O Units for Different Applications,
and Wiring Methods CJ1W-NC133
One Mixed I/O Unit has connectors for,
both inputs and outputs.
Use Mixed I/O Units to easily ,
build space-saving systems. Product name: Pulse I/O Module.
Specifications: Sourcing outputs, MIL connector,
10 inputs (including four interrupt/quickresponse,
inputs and two high-speed counter inputs)6 outputs,
(including two pulse outputs and two PWM outputs) CJ1W-NC133.
Current consumption (A): 5V, 0.08; 24V,--.
Standards: UC1, N, L,CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU CJ1W-NC133. Communi-cations cable: 100Base-TX.
CJ1W-ETN11 Ethernet Communications services: FINS communications, FTP server, socket services, and mail services.
Unit numbers: 0 to F (4 Units max.).Product name: Pulse I/O Module.
Specifications: Sinking outputs, MIL connector,
10 inputs (including four interrupt/quickresponse ,
inputs and two high-speed counter inputs)6 outputs ,
(including two pulse outputs and two PWM outputs).
Current consumption (A): 5V, 0.08; 24V,--.
Standards: UC1, N, L,CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU.Product name: CJ2M (Built-inEtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
20K steps;Data memorycapacity, 64K words,
(DM: 32K words, EM: 32K words ×1 bank);
LD nstruction execution time, 0.04 μs;
EtherNNet/IP function: YES;
Option board slot: YES CJ1W-NC133.
Current consumption (A): 5V, 0.7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machinne automation needs CJ1W-NC133. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU.
