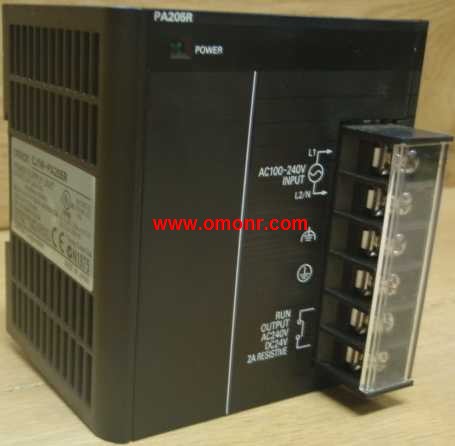

CJ1W-PA205R CJ-series Power Supply Unit
OMRON CJ1W-PA205R Manual And Instructions
CJ1W-PA205R datasheetPDF datasheet
CJ1W-PA205R Safety Precautions
CJ1W-PA205R Instruction Installation Manual
OMRON CJ1W-PA205R Product information and technical parameters：
Brand: OMRON
Name: CJ-series Power Supply Unit
Model: CJ1W-PA205R
Product name: AC Power Supply Unit.
Power supply voltage: 100 to 240VAC.
Output capacity: 5-VDC output capacity, 5A;
24-VDC output capacity, 0.8A;
Total power consumption, 25w.
Options: 24-VDC service power supply, No;
RUN output, Yes; Maintenance forecast monitor, No.
Standards: UC1, N, L, CE.
Equipped with the RUN output for,
checking the operation status,
as well as the replacement.
notification function for easy,
maintenance.
Lineup of five models including the,
AC power supply (25W).
Stable power supply is available from the,
CJ-series CPU Unit to each I/O Units via the,
dedicated bus. The most suitable Power Supply,
Unit can be selected among various I/O ,
specifications and/or options.
...More relevant models >>>>
