>> CS1W-ETN21 Ethernet Unit

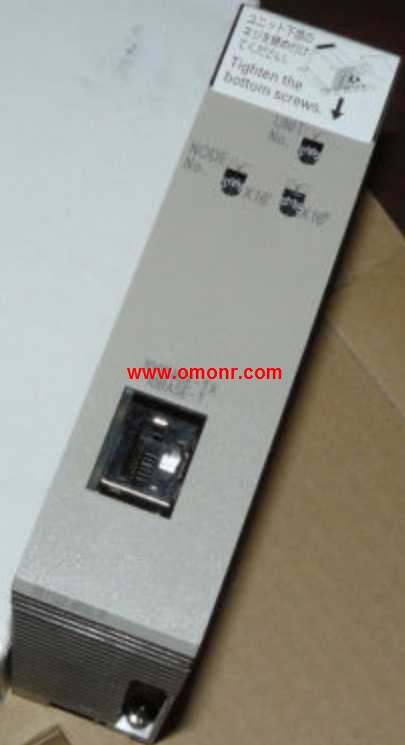

CS1W-ETN21 Ethernet Unit
OMRON CS1W-ETN21 Manual And Instructions
CS1W-ETN21 datasheetPDF datasheet
CS1W-ETN21 Construction of ApplicationsOPERATION MANUAL
CS1W-ETN21 Construction of NetworksOPERATION MANUAL
CS1W-ETN21 safety precautions
OMRON CS1W-ETN21 Product information and technical parameters：
Brand: OMRON
Name: Ethernet Unit
Model: CS1W-ETN21
Unit type: CS1 CPU Bus Unit.
Product name:Ethernet Units.
Specifications: Communi cations cable,
100BASE TX Cable; Communications functions,
FINS communications service(TCP/IP and UDP/IP),
FTP server function, socket service,
mail send service, mail reception,
(remote command reception),
auto-adjustment of PLC''s internal clock,
and server host name specification;
Duplexing, Not supported;
Units per CPU Unit, 4 Units.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.38A; 26V, --.
Standards: UC1, N, L, CE.
Organically Connect the Production,
Site and Management.
Select the required communications,
services according to application needs,
to flexibly integrate PLCs with an,
Ethernet information network.
...More relevant models >>>>
