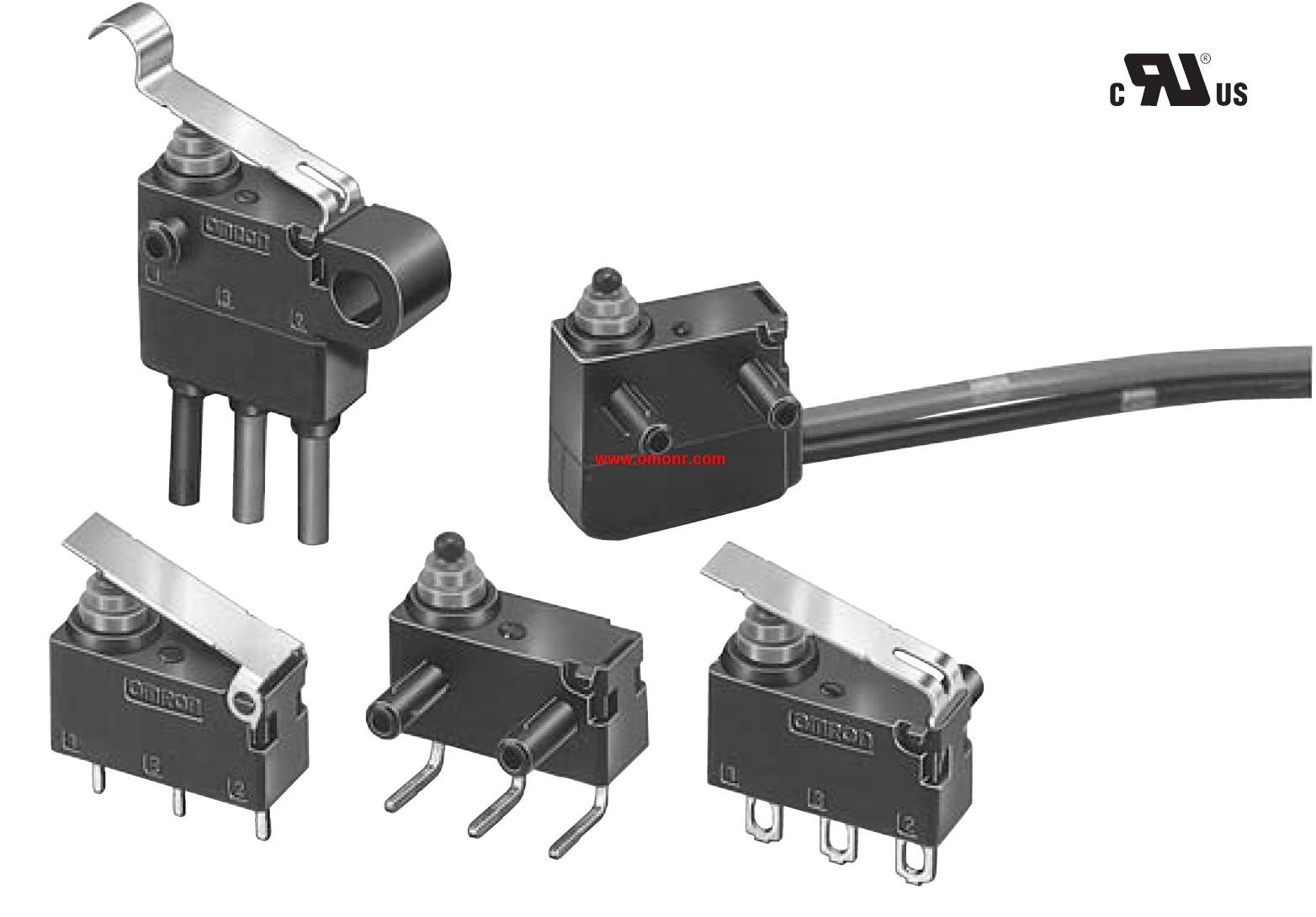

D2HW Series Sealed super small micro switch

Type: Welding / wire type, M3 screw mounting.
Drive rod: leaf Shibai rod type.
Terminal specifications: with wire, the right side of the lead.
Contact specifications: 1b.
The minimum size of the long stroke type can be reliably switch
The body part size is 78% of the previous generation product, which is beneficial to the miniaturization of the equipment D2HW Series.
No swing bars are also used for easy long stroke specifications (OT reference value: 1 D2HW Series4mm).
Without harmful substances to the environment, the lead type has also been lead-free. Contact type: Standard load (250 VAC, 2 A; 125 VDC 0.4 A).
Operation: Alternate operation (Self-holding).
Output: SPDT.
Lighting: LED, 24 VDC.
Operation Unit color symbol: Enter the desired color symbol for the,
Pushbutton in @@ D2HW Series. R (Red); Y (Yellow); G (Green); A (Blue); W (White).
Pushbutton Switch Series with.
Square 40-mm Body.
Combines miniature design with distinct but soft sense of operation.
Easy panel mounting from the front and simple lamp replacement.
without tools. Appearance: Square/Projection type A22-C.
Output: SPST-NO.
Operation: Momentary operation (self-resetting) D2HW Series.
Illumination color: R (red); Y (yellow); G (green);
W (white); A (blue); B (black).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit.
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Type: rectangle.
Screen mode: level 2.
Output: DPDT.
Power supply voltage: DC24V.
Contact type: standard load (AC250V, 3A; DC30V, 3A).
Operation: alternating action (self retaining).
Color: yellow.
Color: blue.
In the touch and the ability to protect than OMRON''s previous models have improved.
The micrro volume design of 23mm is realized D2HW Series.
Micro design and unique combination of soft sensing.
LED has five colors (red, yellow, green, white, and blue).
Built in basic switch improves touch.
Built in basic switches in the previous modell based on the OMRON to improve the protection D2HW Series.
Chip LED to produce a uniform surface brightness.
From the front panel installation, more convenient.
