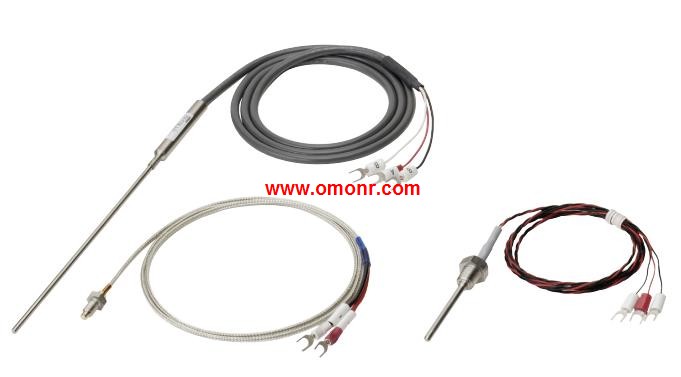

E52-P_ B-N Temperature Sensor

OMRON E52-P_ B-N Manual And Instructions
E52-P_ B-N datasheetPDF datasheet

OMRON E52-P_ B-N Product information and technical parameters:
Brand: OMRON
Name: Temperature Sensor
Model: E52-P_ B-N
Classification: General purpose Models.
Description: Sheathed platinum resistance thermometer.
Temperature range (See note 3.): -200°C to 450°C.
Element type: Pt100.
Conductor type: 3-conductor system.
Class: B.
Protective tubing material: ASTM316L.
Terminal type: Exposed terminals.
Page: 6.
A Wide Variety of High-precision.
Temperature Sensors.
Previous models with M3 screw connections have been joined,
by new models with ferrules to help reduce wiring work.
Ideal for the thermal input devices of Temperature Controllers.
Select from a wide variety of Temperature Sensors according,
to the temperature to be measured, location, and environment,
and also according to the type and shape of the terminal.

Size: 48 x 24mm.
Control output 1: voltage output (SSR driver).
Control output 2:--.
Auxiliary output: 1 points.
Power supply voltage: AC/DC24V.
Terminal type: screw terminal table type (with terminal cover).
Input category: full range multi input.
Heater break, SSR fault detection function: - E52-P_ B-N.
Communication: -.
Event input: 2 points.
A small body of 48 * 24mm specifications on the condensation operation, E5_C series of high performance E52-P_ B-N
Slender body width 48mm * 24mm * 90mm high depth,
The most suitable for small devices / physical and chemical equipment, etc..
Although the small size, but also through the character of the high 10.5mm white PV display to achieve high recognition E52-P_ B-N.
The terminal stage is adopted to disassemble and assemble the structure, which improves the maintenance performance.
The connection method can be selected from a screw terminal and a PUSH-IN fastening terminal.
High speed sampling of 50ms is realized.
Easy to connect with PLC through no program communication.
The use of electric communication conversion Village (sold separately) connected to the computer after,
No power connection can be set E52-P_ B-N.
It can be easily set by CS-Thermo (sold separately). Name: Temperature Controller (See note 1.).
Power supply: 24 VDC.
No. of control points: 2.
Control output: Voltage output (for SSRs).
Auxiliary output: Transistor output: 2 pts (sinking).
Functions: Heater burnout alarm (See note 3.), Heating or heat/cool,
control is selectable (See note 4.)Event input: 1 point per Unit.
Communications functions: RS-485.
Input type (See note 5.): Platinum resistance thermometer.
New DIN Track Mounting Temperature.
Controller.
Two channels of temperature control available despite width of,
only 22.5 mm.
The Temperature Controller itself can be replaaced without,
changing terminal wiring E52-P_ B-N.
Use in combination with a compact Setting Display Unit to,
reduce communications programming requirements.
Front-panel LED indicators for easy operation monitoring.
Power supply and communicatiions wiring not required between,
Units when mounted side-by-side E52-P_ B-N.
CompoWay/F communications protocol supported.
UL, CSA, and CE Marking compliance.
