>> E5AN-Q3PT-N Foundation type temperature controller

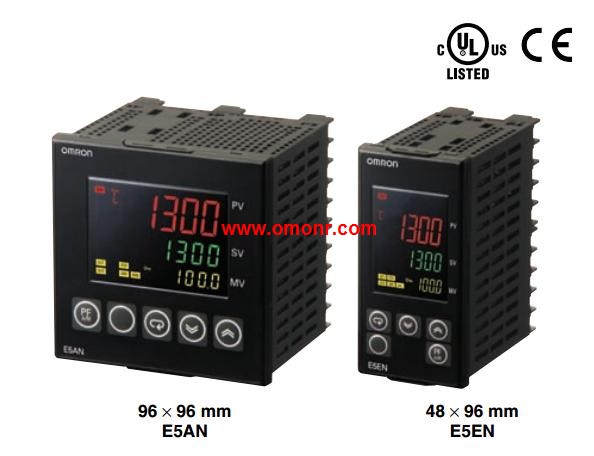

E5AN-Q3PT-N Foundation type temperature controller
OMRON E5AN-Q3PT-N Manual And Instructions
E5AN-Q3PT-N datasheetPDF datasheet
E5AN-Q3PT-N datasheetPDF datasheet
E5AN-Q3PT-N Basic TypeUser's Manual
E5AN-Q3PT-N User's Manual
E5AN-Q3PT-N User's Manual
E5AN-Q3PT-N Communications FunctionsUser's Manual
E5AN-Q3PT-N INSTRUCTION Manual
OMRON E5AN-Q3PT-N Product information and technical parameters：
Brand: OMRON
Name: Foundation type temperature controller
Model: E5AN-Q3PT-N
Size: 96 x 96mm.
Ontology: terminal type, temperature input type.
Category: control output 1 point type (power supply AC100 ~ 240V).
Shell color: black.
Control output: voltage output (SSR driver).
Control mode: standard or heating cooling.
Auxiliary output points: 3 points.
Heater with broken wire, SSR fault, heater over current detection function /ES1B power supply: ES1B power supply.
Event input points: -.
Transfer output: -.
Communication: -.
The general temperature controller 96mm, 48 * 96mm square has been upgraded to improve the performance and function of /.
Indicates that the accuracy of the upgrade, increase the function of prevention and maintenance, further enhance the performance.
Add PV/SV state display function, to see the state of the thermostat
(automatic / manual, RUN/STOP, alarm), interactive display PV/SV.
Increase the number of control output ON/OFF counting function, can prevent the maintenance of temperature controller internal relay.
Increased the 3 segment display, which can display the current value / target / operation.
Increased the PF key, the distribution of automatic / manual, RUN/STOP, etc., can be a key operation.
