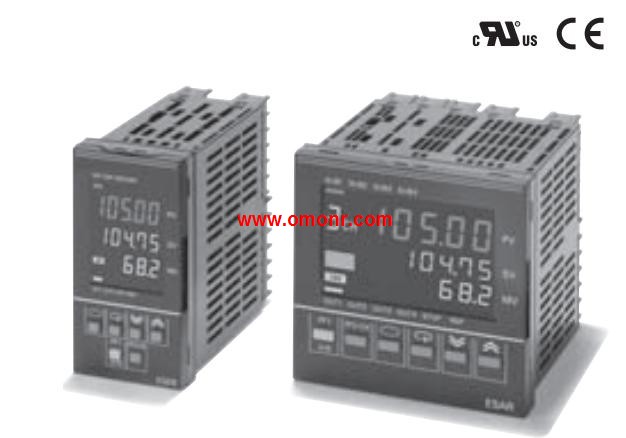

E5AR-TC43B-FLK Programmable Digital Controller
OMRON E5AR-TC43B-FLK Manual And Instructions
E5AR-TC43B-FLK datasheetPDF datasheet
E5AR-TC43B-FLK datasheetPDF datasheet
E5AR-TC43B-FLK OPERATION MANUAL
E5AR-TC43B-FLK Communications Manual
E5AR-TC43B-FLK User's Manual
E5AR-TC43B-FLK INSTRUCTION Manual
OMRON E5AR-TC43B-FLK Product information and technical parameters：
Brand: OMRON
Name: Programmable Digital Controller
Model: E5AR-TC43B-FLK
Size: 96 × 96 mm.
Control type: Basic control (1 loop).
Control mode: Standard control Heating and cooling control.
Outputs(control/transfer): 2 (current + current).
Optional functions: Auxiliary outputs (SUB), 4; Event inputs, 2;
Serial communications, RS-485.
A new High-speed, High-precision Digital.
Controller that is Programmable!
Create up to 32 programs with up to 256 segments total.
Coordinated operation for up to four channels with one Digital Controller.
0.01°C High resolution for Pt input.
High-speed sampling at 50 ms.
Settings easily made from a computer using the CX-Thermo.
RoHS compliance for world-wide application.
