>> E5C2-R20P-D Electronic temperature controller

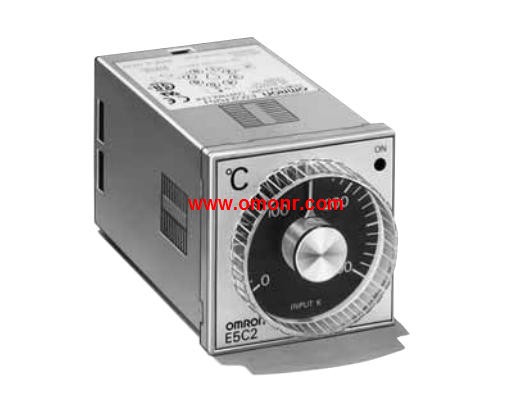

E5C2-R20P-D Electronic temperature controller
OMRON E5C2-R20P-D Manual And Instructions
E5C2-R20P-D datasheetPDF datasheet
E5C2-R20P-D INSTRUCTION Manual
OMRON E5C2-R20P-D Product information and technical parameters：
Brand: OMRON
Name: Electronic temperature controller
Model: E5C2-R20P-D
Setting: simulation settings.
Indication mode: no indication.
Adjustment mode: ON/OFF action.
Output: relay.
Input: platinum resistance Pt100.
The size of the DIN48 to achieve the simulation set, low cost.
The most small and realize the low cost of.
Proportional (P) action in the regulation mode.
And the reset function is added.
Through the installation of the adapter can be continuously close.
The installation of DIN guide rail and panel mounting can be carried out by means of insertion.
