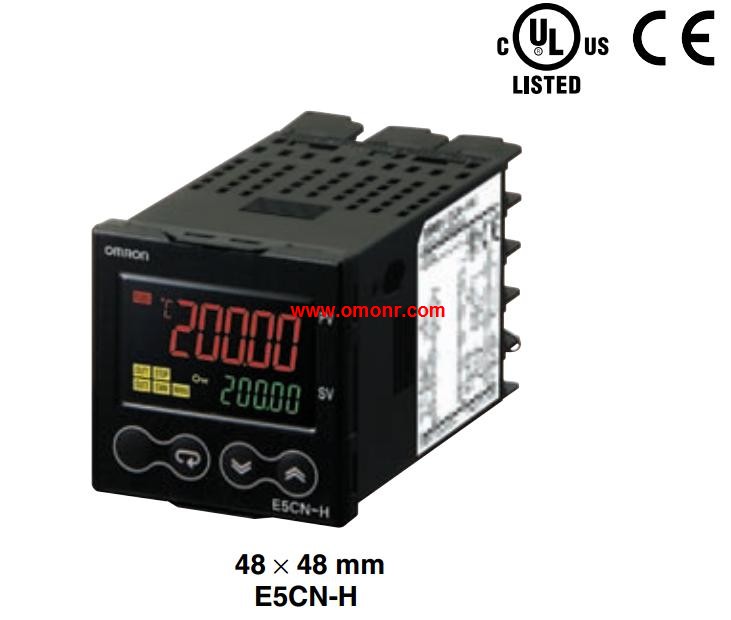

E5CN-HTQ2H03D-FLK Programmed temperature controller
OMRON E5CN-HTQ2H03D-FLK Manual And Instructions
E5CN-HTQ2H03D-FLK datasheetPDF datasheet
E5CN-HTQ2H03D-FLK Programmable TypeUser's Manual
E5CN-HTQ2H03D-FLK Programmable TypeBasic Type
E5CN-HTQ2H03D-FLK Basic Type
E5CN-HTQ2H03D-FLK Basic TypeUser's Manual
E5CN-HTQ2H03D-FLK User's Manual
E5CN-HTQ2H03D-FLK User's Manual
E5CN-HTQ2H03D-FLK Communications FunctionsUser's Manual
E5CN-HTQ2H03D-FLK USER'S MANUAL
E5CN-HTQ2H03D-FLK Communications FunctionsUser's Manual
E5CN-HTQ2H03D-FLK USER'S MANUAL
E5CN-HTQ2H03D-FLK INSTRUCTION Manual
OMRON E5CN-HTQ2H03D-FLK Product information and technical parameters：
Brand: OMRON
Name: Programmed temperature controller
Model: E5CN-HTQ2H03D-FLK
Size: 48 * 48mm, terminal type.
Type: control output 1 point type (power AC/DC24V).
Shell color: black.
Control output: voltage output (SSR driver).
Control mode: standard or heating cooling.
Auxiliary output points: 2 points.
Heater break, SSR fault detection function: single phase heater detection function.
Event entry point: 2.
Transfer output: -.
Communication: RS-485.
New program type.
A new type of liquid crystal with high performance cost ratio is adopted in the 256 paragraph,
Visual angle, contrast can be improved.
Can be set up to 8 procedures (mode) x 32 (step) procedure.
High resolution 5 bit display / can display 0.01 degrees C (to achieve a small size of 48 x 48mm).
High speed sampling period 60ms.
Full of all models (capable of thermocouple /Pt/ analog input switching),
1 machines to support a variety of sensors.
Add PV/SV state display function, to see the state of the thermostat
(automatic / manual, RUN/RESET, alarm),
Interactive display PV/SV.
By supporting software (Ver.4.3 CX-Thermo),
In simple arithmetic functions (AND/OR logic and delay).
Setting the program settings that can perform flexible contact output.
The control output ON/OFF times counting function can predict the fault of the internal relay of the temperature controller.
