>> EJ1C-EDUC-NFLK Modular Temperature Controller

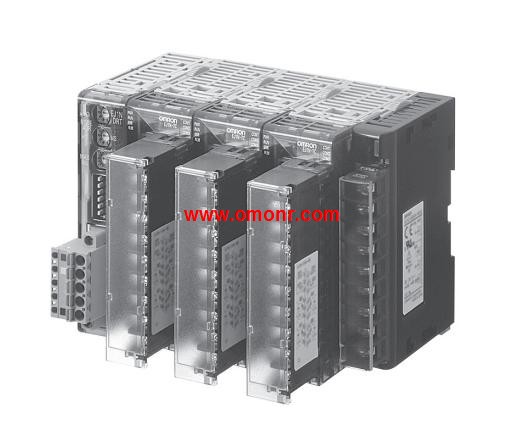

EJ1C-EDUC-NFLK Modular Temperature Controller
OMRON EJ1C-EDUC-NFLK Manual And Instructions
EJ1C-EDUC-NFLK datasheetPDF datasheet
EJ1C-EDUC-NFLK OPERATION MANUAL
EJ1C-EDUC-NFLK User's Manual
EJ1C-EDUC-NFLK INSTRUCTION sheet
OMRON EJ1C-EDUC-NFLK Product information and technical parameters：
Brand: OMRON
Name: Modular Temperature Controller
Model: EJ1C-EDUC-NFLK
Name: End Unit *1.
Power supply voltage: 24 VDC.
No. of control points: None.
Control outputs 1 and 2: None.
Control outputs 3 and 4: None.
Auxiliary output: Transistor output: 2 points (sinking).
Functions: burnout Heater alarm, None; Event inputs, None.
Communications functions: Port A or B: RS-485 Connector: Port A.
Input type: No input.
Terminal: Screw-less clamp.
In-panel Temperature Controller with Flexible,
Modular Design and Wide Integration with Host,
Devices.
The compact modular structure enables construction of temperature,
systems optimally suited to the application.
Connection can be made to a Programmable Controller without any,
programming required, reducing the number of steps required in ladder,
programming design.
One fully universal-input Unit includes a thermocouple, platinum-resistance,
thermometer, and analog input for easy selection and reduced inventory,
requirements.
Connect directly to the G3ZA Multi-channel Power Controller using,
optimum cycle control for high-accuracy regulation with minimal noise.
Autotuning (AT) can be used for independent heating/cooling PID control.
Self-tuning (ST) can be used to calculate the PID constants with the step,
response method.
Up to 16 Temperature Controllers can be connected to a single DeviceNet,
Communications Unit.
