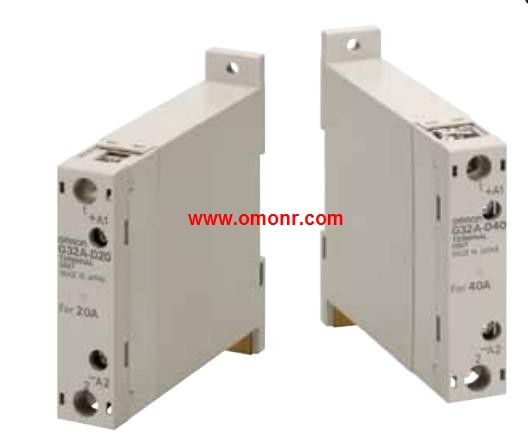

G32A-D20 Short-circuit Units
OMRON G32A-D20 Manual And Instructions
G32A-D20 datasheetPDF datasheet
OMRON G32A-D20 Product information and technical parameters：
Brand: OMRON
Name: Short-circuit Units
Model: G32A-D20
Name: Short-circuit Unit.
Current flow: 10 A, 20 A.
Applicable SSR: G3PA-210B-VD, G3PA-220B-VD, G3PA-420B-VD.
Refer to Safety Precautions for All Solid State Relays.
Allows 2-wire Switching of 3-phase Power.
Ideal for 2-wire switching of 3-phase heaters.
Improve ease of operation.
