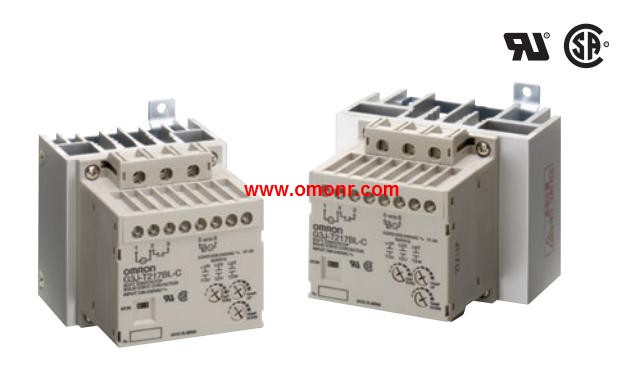

>> G3J-T-C Series Solid State Contactor
G3J-T-C Series Solid State Contactor
G3J-T-C Series Introduce |
G3J-T-C Series Model |
G3J-T-C Series Catalog / Manual / Instructions / Software download
G3J-T-C Series Catalog / Manual / Instructions / Software download
OMRON G3J-T-C Series Manual And Instructions
G3J-T-C Series datasheetPDF datasheet
G3J-T-C Series datasheetPDF datasheet
OMRON G3J-T-C Series Product information and technical parameters：
Brand: OMRON
Name: Solid State Contactor
Model: G3J-T-C Series
New Models with AC Power Supply Input and,
Monitor Output Equivalent to Non-contact,
SPST-NO Join the G3J-T Series,
Limiting the starting current saves energy.
Certified for UL and CSA.
Mounts with screws or to DIN Track.
Compact design with heat sinks (3.7-kW models: 100 × 100 ×130 mm (W × H × D)).
Built-in snubber circuit and thyristor.
Built-in operation indicator.
