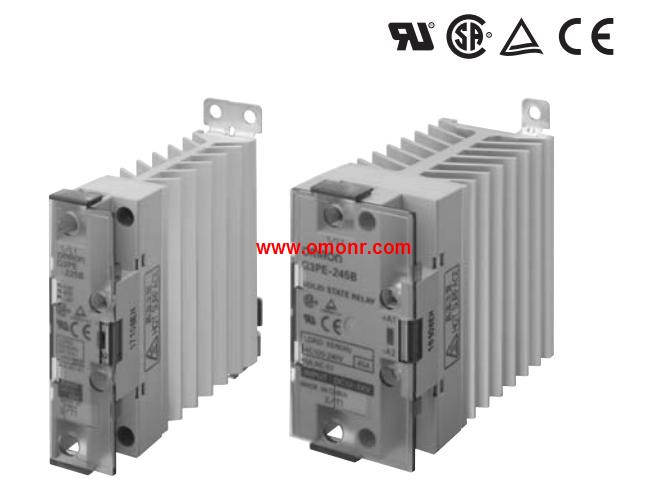

>> G3PE-535B-3 DC12-24 Solid State Contactors for Heaters
G3PE-535B-3 DC12-24 Solid State Contactors for Heaters
G3PE-535B-3 DC12-24 Introduce |
G3PE-535B-3 DC12-24 Catalog / Manual / Instructions / Software download
OMRON G3PE-535B-3 DC12-24 Manual And Instructions
G3PE-535B-3 DC12-24 datasheetPDF datasheet
OMRON G3PE-535B-3 DC12-24 Product information and technical parameters：
Brand: OMRON
Name: Solid State Contactors for Heaters
Model: G3PE-535B-3 DC12-24
Number of phases: Three-phase.
Insulation method: Phototriac coupler.
Operation indicator: Yes (yellow).
Rated input voltage: 12 to 24 VDC.
Zero cross function: Yes.
Type: Screw mounting.
Applicable load: 35 A, 200 to 480 VAC.
Number of pole: 3.
Compact, Slim-profile SSRs with Heat Sinks.
Solid State Contactors for Three-phase.
Heaters Reduced Installation Work.
with DIN Track Mounting.
RoHS compliant.
Surge pass protection improved surge dielectric strength,
for output currents. (OMRON testing).
Slim design with 3-phase output and built-in heat sinks.
DIN Track mounting types and screw mounting types are available.
All DIN Track mounting types mount to DIN Track.
(applicable DIN Track: TR35-15Fe (IEC 60715)).
Conforms to UL, CSA, and EN standards (TÜV certification).
