OMRON G3S4-D Product information and technical parameters：
Brand: OMRON
Name: Terminal SSR
Model: G3S4-D
Contact configuration: Four SPST-NO relays.
Heat sink: Yes.
Built-in SSRs: G3SD-Z01P-PD.
Zero cross function: No.
Applicable output load: 1 A at 3 to 26 VDC (See note 2.).
Rated voltage: 5 VDC, 12 VDC, 24 VDC.

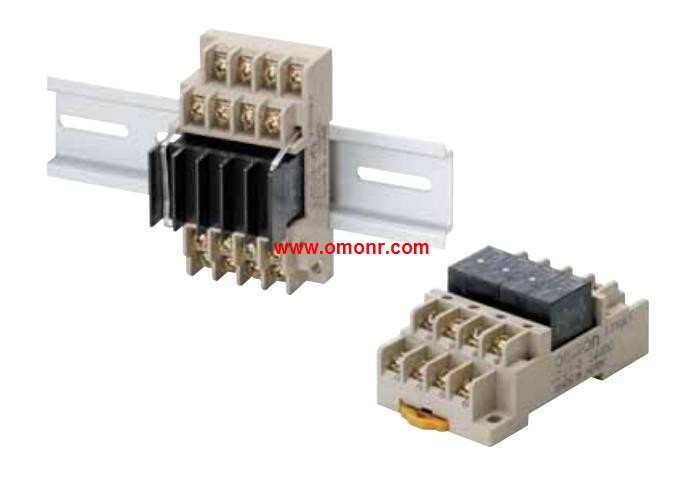

Compact Terminal SSR with 4 Outputs.
Easy-to-use SSR block that combines four compact G3S SSRs,
sockets, and heat sink in one unit.
Easy wiring with separate I/O terminal construction.
LED operation indicator.
Special socket used for easy Relay replacement.
Mounts either on DIN track or with screws.
