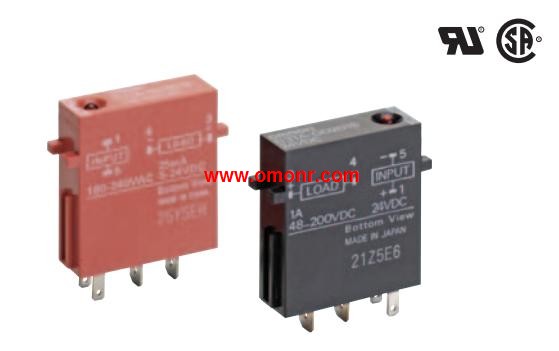

OMRON G3TA Series Product information and technical parameters：
Brand: OMRON
Name: Solid State Relays
Model: G3TA Series
I/O SSRs That Mount to OMRON’s G7TC I/O Block.
Input and output modules are available in wide variety.
Snaps easily into P7TF I/O Terminals and can be used together,
with G7T I/O relays.
Operation of each SSR can be monitored easily through an LED indicator.
Models certified for UL and CSA added to the series ("-US" models).
...More relevant models >>>>
G3TA Series datasheetPDF datasheet
OMRON G3TA Series Product information and technical parameters：
Brand: OMRON
Name: Solid State Relays
Model: G3TA Series
I/O SSRs That Mount to OMRON’s G7TC I/O Block.
Input and output modules are available in wide variety.
Snaps easily into P7TF I/O Terminals and can be used together,
with G7T I/O relays.
Operation of each SSR can be monitored easily through an LED indicator.
Models certified for UL and CSA added to the series ("-US" models).
Standard certification: No.
Insulation mode: three end two-way photoelectric switch.
Zero trigger function: No.
Action indicator: there.
Applicable load of output: DC24 2.5A ~ 240V.
Input rated voltage: DC12 ~ 24V.
With the LY1, LY2 large power relay with the same shape of the G3H series, the new international standard certification (-VD type) G3TA Series.
Achieved UL, CSA, EN (VDE certification) standard certification G3TA Series (type -VD)
Socket terminal type of same size with LY (1 pole, 2 pole type).
A model with an action indicator to check the status of the input. (type N)Insulation mode: three end two-way switch coupler.
Zero trigger function: No.
Action indicator: there.
Applicable load of output: AC5 240V ~ DC5 1 G3TA Series. 0A ~ 100V.
Input rated voltage: DC12V.
With the same shape of the power FET MOS G2R relay AC/DC dual, can achieve 1A load switching performance.
Can achieve AC240V or DC100V, 1A load switch.
Output open circuit leakage current: 10 A.
Input / output voltage resistance AC2500V.
Built in input resistance and over voltage absorbing circuit.
Can be carried out AC full wave rectifier load, half wave rectifier load switch G3TA Series.
Terminal (wire connection): Push-In Plus Terminal.
Applicable output load: AC load.
Zero cross function: No.
Rated input voltage: AC/DC 24V.
Global standard size,
low profile slim I/O relay with width 6.2 mm,
slim I/O solid state relay.
Realized about 25% lower profile than conventional,
products, contributing to further miniaturization of the,
control panel.
Push-In Plus terminal blocks are used to save wiring work,
in comparison with conventional screw terminals.
(Wiring time is reduced by 60%* in comparison with,
traditional screw termiinals G3TA Series. ).
No screw loosening means maintenance-free application,
realizing high reliability.
Hand-free structure that holds an inserted flat-blade,
screwdriver to achieve easier wiring work for stranded wires.
Screw terminal is also stocked to meet the screw type needs G3TA Series.
Mounted relay or solid-state relay has a plug-in terminal.
that is difficult to bend at the time of exchange.
Insulation mode: three end two-way photoelectric switch.
Zero trigger function: No.
Action indicator: there.
Applicable load of output: DC24 2.5A ~ 240V.
Input rated voltage: DC12 ~ 24V.
With the LY1, LY2 large power relay with the same shape of the G3H series, the new international standard certification (-VD type) G3TA Series.
Achieved UL, CSA, EN (VDE certification) standard certification G3TA Series (type -VD)
Socket terminal type of same size with LY (1 pole, 2 pole type).
A model with an action indicator to check the status of the input. (type N)Insulation mode: three end two-way switch coupler.
Zero trigger function: No.
Action indicator: there.
Applicable load of output: AC5 240V ~ DC5 1 G3TA Series. 0A ~ 100V.
Input rated voltage: DC12V.
With the same shape of the power FET MOS G2R relay AC/DC dual, can achieve 1A load switching performance.
Can achieve AC240V or DC100V, 1A load switch.
Output open circuit leakage current: 10 A.
Input / output voltage resistance AC2500V.
Built in input resistance and over voltage absorbing circuit.
Can be carried out AC full wave rectifier load, half wave rectifier load switch G3TA Series.
Terminal (wire connection): Push-In Plus Terminal.
Applicable output load: AC load.
Zero cross function: No.
Rated input voltage: AC/DC 24V.
Global standard size,
low profile slim I/O relay with width 6.2 mm,
slim I/O solid state relay.
Realized about 25% lower profile than conventional,
products, contributing to further miniaturization of the,
control panel.
Push-In Plus terminal blocks are used to save wiring work,
in comparison with conventional screw terminals.
(Wiring time is reduced by 60%* in comparison with,
traditional screw termiinals G3TA Series. ).
No screw loosening means maintenance-free application,
realizing high reliability.
Hand-free structure that holds an inserted flat-blade,
screwdriver to achieve easier wiring work for stranded wires.
Screw terminal is also stocked to meet the screw type needs G3TA Series.
Mounted relay or solid-state relay has a plug-in terminal.
that is difficult to bend at the time of exchange.
...More relevant models >>>>
