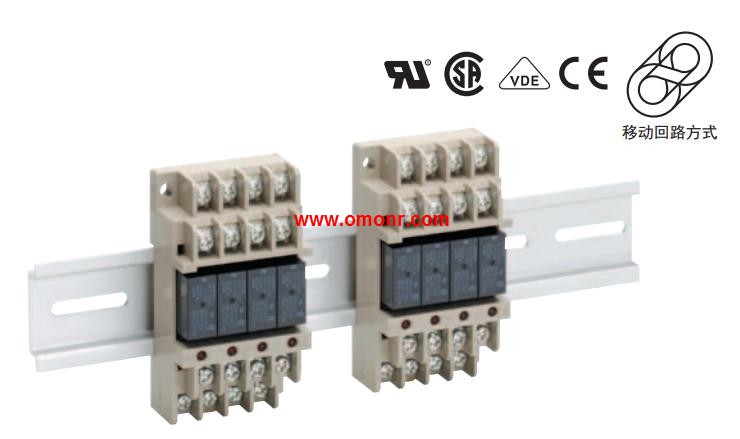

G6B-48BND Terminal Relay
OMRON G6B-48BND Manual And Instructions
G6B-48BND datasheetPDF datasheet
OMRON G6B-48BND Product information and technical parameters：
Brand: OMRON
Name: Terminal Relay
Model: G6B-48BND
Classification: Equipped with operation indicator and diode to absorb coil surge.
Contact form: 4PST (high reliability).
Mounting method: DIN Track or screw mounting.
Terminals: Phillips screw terminal.
Rated voltage: 5 VDC, 12 VDC, 24 VDC.
Compact Terminal Relay with 4 Independent.
Outputs.
Equipped with four G6B Mini-relays that are compact, highly sen,
sitive, and highly resistant to dielectric surges, and that can switch,
5 amps of power.
Sealed plastic construction used for relays.
Easy wiring with separated input/output terminals.
Special P6B Mounting Socket used to facilitate maintenance,
(except for high-reliability models).
UL and CSA certification for standard models,
(except for high-reliability models).
VDE certification for G6B-4BND/47BND/48BND for 12/24 VDC.
DIN Track mounting, and screw mounting models are available.
...More relevant models >>>>
