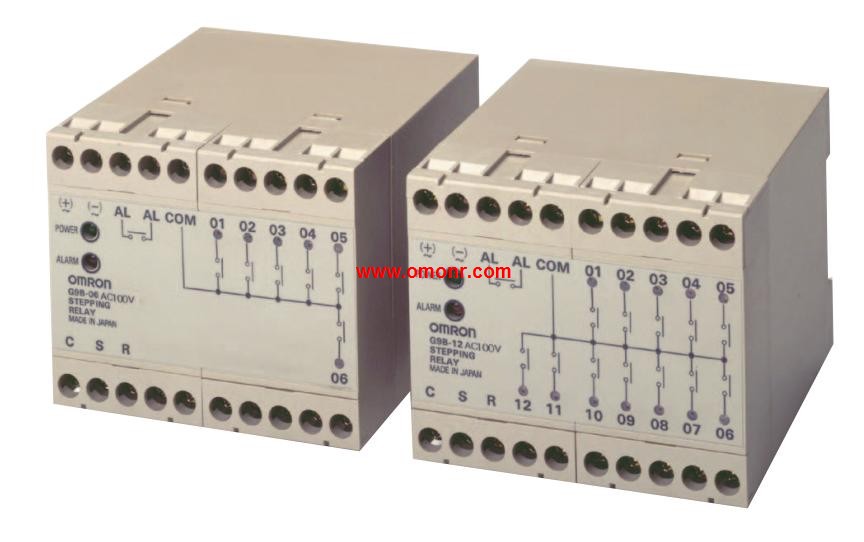

G9B Series Stepping Relay Unit
G9B Series Introduce |
G9B Series Model |
G9B Series Catalog / Manual / Instructions / Software download
G9B Series Catalog / Manual / Instructions / Software download
OMRON G9B Series Manual And Instructions
G9B Series datasheetPDF datasheet
OMRON G9B Series Product information and technical parameters：
Brand: OMRON
Name: Stepping Relay Unit
Model: G9B Series
Ideal for Controlling Pumps and Production.
Lines with Six or Twelve Stepping Circuits.
Built-in relays switch 2 A at 250 VAC or 30 VDC.
Initialization of stepping with reset input.
Uses memory that stores setting status for 10 days without.
power. All internal contacts are released when no power is supplied.
Detects an internal element malfunction caused by external.
noise, indicates the malfunction with an alarm indicator, and,
turns the relay alarm output ON. (An internal relay malfunction,
or internal relay contact weld cannot be detected.).
With safety-design terminals which prevent electric shock accidents.
With easy-to-see indicators which display the stepping status.
