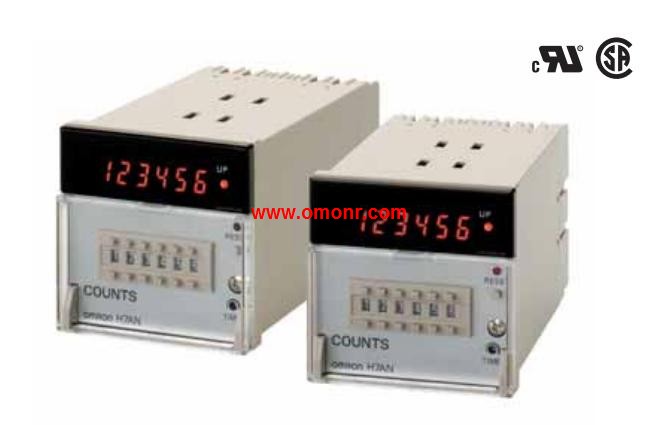

H7AN-RT6 Digital Counter
OMRON H7AN-RT6 Manual And Instructions
H7AN-RT6 datasheetPDF datasheet
H7AN-RT6 User's Manual
OMRON H7AN-RT6 Product information and technical parameters：
Brand: OMRON
Name: Digital Counter
Model: H7AN-RT6
Operating method: Incrementing, decrementing, and reversible (UP/DOWN A to F).
Mounting method: Flush mounting.
Input signal method (Count and reset inputs): Contact and transistor input, voltage (H and L).
Memory backup: No.
Display: Yes (8-mm high 7-segment LED).
Models: 6 digits.
A DIN 72 x 72 mm Best-selling Counter.
Easy setting with thumbwheel switches.
A draw-out construction enables maintenance without rewiring.
Models with 2-, 4-, 6-, or 8-digit displays are also available.
Total Counter models are also Available.
Complies with UL and CSA Marking.
