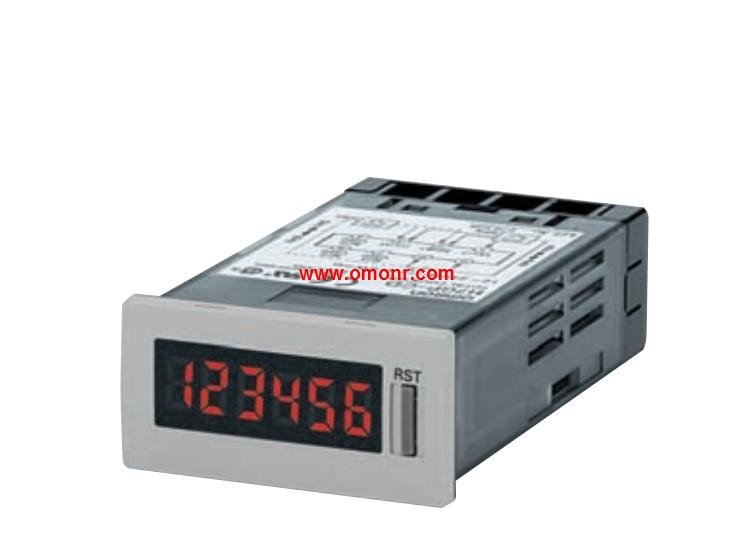

H7GP-CD Total Counter/Time Counter
OMRON H7GP-CD Manual And Instructions
H7GP-CD datasheetPDF datasheet
H7GP-CD Communications Manual
OMRON H7GP-CD Product information and technical parameters：
Brand: OMRON
Name: Total Counter/Time Counter
Model: H7GP-CD
Supply voltage: 12 to 24 VDC.
6-digit total counter: Light gray.
DIN 48 x 24-mm Total Counter/Time Counter,
with Easy-to-read Displays and Water and,
Oil Resistance Equivalent to IP66.
High-visibility, negative transmissive LCD display with 8.5-mmhigh characters and, built-in red LED backlight at low power.
consumption.
IP66 with oil resistance and NEMA 4 protection achieved by,
unifying the front with the case and by using oil-resistant parts,
and materials.
Compact (80 mm) body.
Just change a switch setting for either an NPN or PNP input.
Supports both external resetting and manual resetting.
Finger-protection terminal block cover prevents electrical shock,
and conforms to VDE0106, Part 100.
Certified for UL and CSA safety standards.
Complies with EMC standards (EN 61326) and CE Marking.
