>> K3HB-HTA-1 AC100-240 Temperature panel

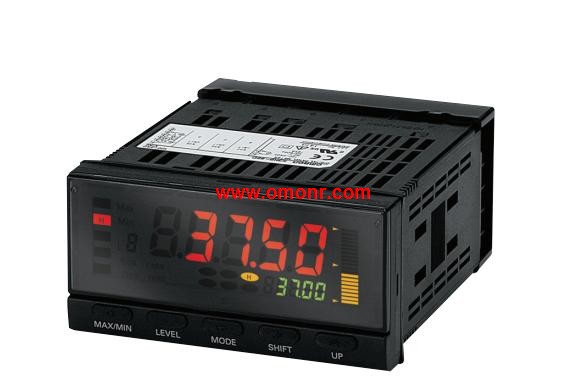

K3HB-HTA-1 AC100-240 Temperature panel
K3HB-HTA-1 AC100-240 Introduce |
K3HB-HTA-1 AC100-240 Catalog / Manual / Instructions / Software download
OMRON K3HB-HTA-1 AC100-240 Manual And Instructions
K3HB-HTA-1 AC100-240 datasheetPDF datasheet
OMRON K3HB-HTA-1 AC100-240 Product information and technical parameters：
Brand: OMRON
Name: Temperature panel
Model: K3HB-HTA-1 AC100-240
Type of input: platinum resistance / thermocouple input.
Event input terminal 4 points (TIMING, S-TIM, HOLD, RESET) is equipped with.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
Temperature indicator and measurement of various processes.
Action determine the color, can switch the green / Red 2 kinds of color display.
High speed sampling of 50 /s (20ms).
0.01 degree: platinum temperature resistance body Pt100 high resolution.
Thermocouple sensor (full range) to support the resolution of 0.1.
The temperature input compensation can be easily set by 2 points.
Series of DeviceNet type.
UL standard applicable certification (standard
