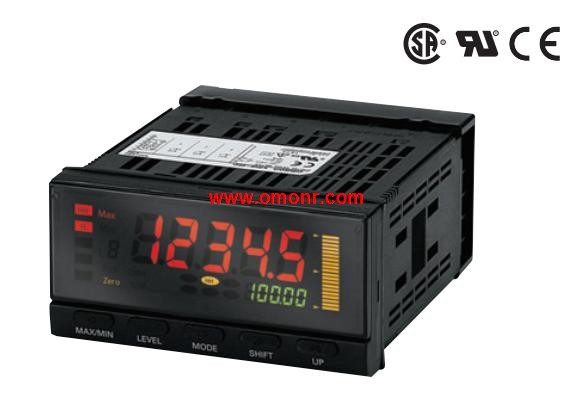

K3HB-V Series Weighing Indicator

K3HB-V Series Introduce | K3HB-V Series Model |
K3HB-V Series Catalog / Manual / Instructions / Software download

OMRON K3HB-V Series Manual And Instructions
K3HB-V Series datasheetPDF datasheet

OMRON K3HB-V Series Product information and technical parameters：
Brand: OMRON
Name: Weighing Indicator
Model: K3HB-V Series
An Ideal Indicator for OK/NG Judgements in Automated and,
Picking Machines, Measuring Factors such as Pressure,
Load, Torque, and Weight Using Load Cell Signal Input.
Easy recognition of judgement results using color display that can be switched,
between red and green.
Equipped with a position meter for monitoring operating status trends.
External event input allows use in various measurement and discrimination, applications.
Input 0.001 mVDC or higher (0.000 to 19.999 mV range supported).
External power takeoff of 100 mA at 10 VDC provided. (Models with 5-VDC,
power takeoff also available.).
Series expanded to include DeviceNet models.
Short body with depth of only 95 mm (from behind the front panel), or 97 mm,
for DeviceNet models.
UL certification approval (Certification Mark License).
CE Marking conformance by third party assessment body.
Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66).
Capable of high-speed sampling at 50 times per second (20 ms).
• Easy-to-set two-point scaling allows conversion and display of any,
user-set values.

Input type: DC voltage input type.
Output type: communication; RS-232C; NPN open collector (HH, H, PASS, L, LL).
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC/DC24V.
96 (W) * 48 (H * 95mm) depth
Some models are not equipped with K3HB-V Series.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table K3HB-V Series
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
DeviceInput type: DC current input K3HB-V Series.
Output type: transistor; -; NPN open collector (HH, H, PASS, L, LL).
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC/DC24V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table K3HB-V Series.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
DeviceNet type systemOperation / reset system: time limit operation / auto reset.
Time limit contact: DPDT.
Time range: 0.1s ~ 30min.
Supply voltage: AC110V, AC220V (50/60Hz); DC24V.
Mounting: surface /DIN guide rail mounting (with socket).
Micro timer compatible with MY relay.
ON delay function, can accurately control the time.
Large and transparent time setting knob is easy to set up time.
Pin configuration compatible with MY poower relay K3HB-V Series.
Access to UL, CSA and CCC certification in line with EN61812-1 and EMC standards. Count input: PNP/NPN universal DC voltage input(4.5 to 30 VDC).
Max. counting speed: 30 Hz ←→ 1 kHz(switchable).
Display: 7-segment LCD.

Model: Light-gray body K3HB-V Series.
Eight-digits, counting range 0 to 99999999.
Dual input speed: 30 Hz ←→ 1 kHz,
(except for AC/DC multivoltage input models).
