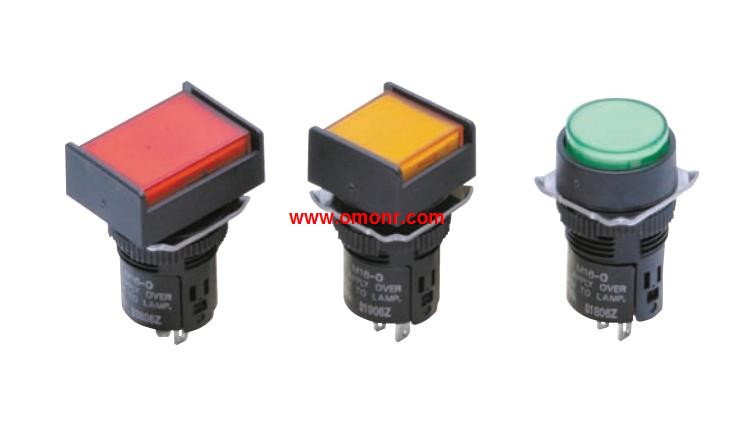

M16-TR-12 Indicator
OMRON M16-TR-12 Manual And Instructions
M16-TR-12 datasheetPDF datasheet
OMRON M16-TR-12 Product information and technical parameters：
Brand: OMRON
Name: Indicator
Model: M16-TR-12
Appearance: Rectangular (M16-T).
Lighting: Incandescent lamp, 12 VAC/VDC.
Degree of protection: IP40.
Display color symbol: R: red; Y: yellow; G: green; A: blue;
W: white; PY: pure yellow; PW: pure white.
Cylindrical 16-dia. Indicator.
Same basic design as the A16 Pushbutton Switch.
