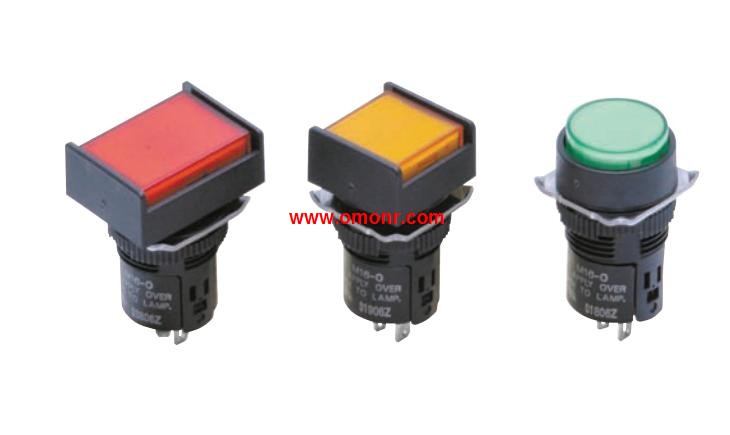

M165-APY-24D Indicator
OMRON M165-APY-24D Manual And Instructions
M165-APY-24D datasheetPDF datasheet
OMRON M165-APY-24D Product information and technical parameters：
Brand: OMRON
Name: Indicator
Model: M165-APY-24D
Appearance: Rectangular (M16-A).
Lighting: LED without Voltage Reduction Unit, 24 VAC/VDC.
Degree of protection: IP65 oil-resistant.
Display color symbol: R: red; Y: yellow; G: green; A: blue;
W: white; PY: pure yellow; PW: pure white.
Cylindrical 16-dia. Indicator.
Same basic design as the A16 Pushbutton Switch.
