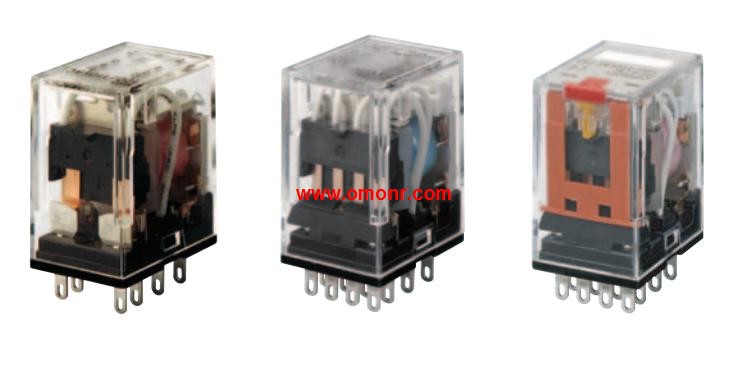

MY4F Miniature Power Relays

Classification: Models with built-in CR circuits.
Rated voltage: Standard products, 100/110 or 200/220 VAC;
Made-to-order items, 110/120 or 220/240 VAC.
New Latching Levers for Circuit Checking.
Added to Our Best-selling.
MY General-purpose Relays.
Now lead-free to protect the environment.
VDE certification (Germany) MY4F.
Different colors of coil tape for AC and,
DC models to more easily distinguish them MY4F
MY(S) models with latching levers added for,
easier circuit checking. Terminal (Wire connection): Screw terminal.
Classification: Microloads.
Latching lever (Test switch): No.
Rated input voltage: AC/DC, 24V.
Global standard size, low profile slim.
I/O relay with width 6.2 mm.
Realized about 25% lower profile than conventional MY4F.
products, contributing to further miniaturization of the control panel.
Realized opening and closing ability with one pole 6 A slim shape.
Micro load products for one pole 50 mA using Au-plated.
contacts for small load switching also available.
Since G2RV is a transparent case, confirming the state of,
the contact with the naked eye is possible, and easy to,
confirm abnormality on-site (installed location) MY4F.
Screw terminal is also stocked to meet the screw type needs.
Mounted relay uses plug-in terminals that are difficult to,
bend when exchanging. Classification: Input (bifurcated contact), SPST-NO.
Rated voltage: 12 VDC, 24 VDC, 100/110 VAC, 200/220 VAC.
Slim-styled I/O Relay Saves Space in Panel.
SPST-NO, SPST-NC, and SPDT contact forms available for,
output (SPST-NO only for input).
Ultra-slim housing measuring 29 (W) x 10 (D) x 32 (H) mm.
All Output Relays provide a long endurance (1,000,000,
operations at 5 A), while all Input Relays provide microswitching,
power (100 μA at 1 V).
Approved by UL and CSA standards. Classification: Models with built-in CR circuits and operation indicators.
Rated voltage: Standard products, 100/1100 or 200/220 VAC;
Made-to-order items, 110/120 or 220/240 VAC MY4F.
New Latching Levers for Circuit Checking.
Added to Our Best-selling.
MY General-purpose Relays.
Now lead-free to protect the environment.
VDE certification (Germany).
Differeent colors of coil tape for AC and,
DC models to more easily distinguish them MY4F.
MY(S) models with latching levers added for,
easier circuit checking.
