MY4ZH Miniature Power Relays
OMRON MY4ZH Manual And Instructions
MY4ZH datasheetPDF datasheet
MY4ZH datasheetPDF datasheet

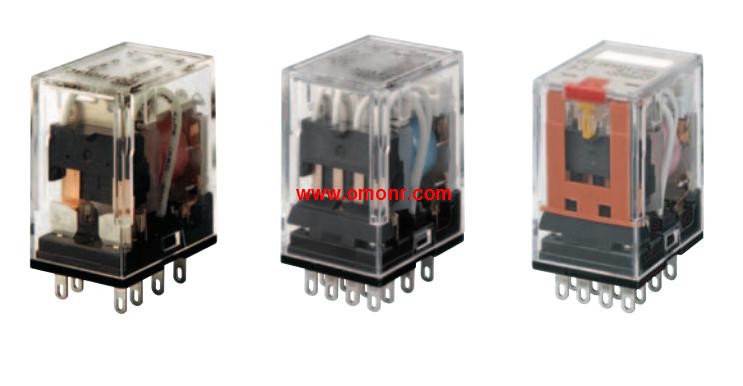

OMRON MY4ZH Product information and technical parameters：
Brand: OMRON
Name: Miniature Power Relays
Model: MY4ZH
Type: 4 poles.
Classification: Bifurcated contacts.
Rated voltage: 24, 100/110, or 110/120 VAC, 12, 24, 48, or 100/110 VDC.
New Latching Levers for Circuit Checking.
Added to Our Best-selling.
MY General-purpose Relays.
Now lead-free to protect the environment.
VDE certification (Germany).
Different colors of coil tape for AC and,
DC models to more easily distinguish them.
MY(S) models with latching levers added for,
easier circuit checking.
...More relevant models >>>>
