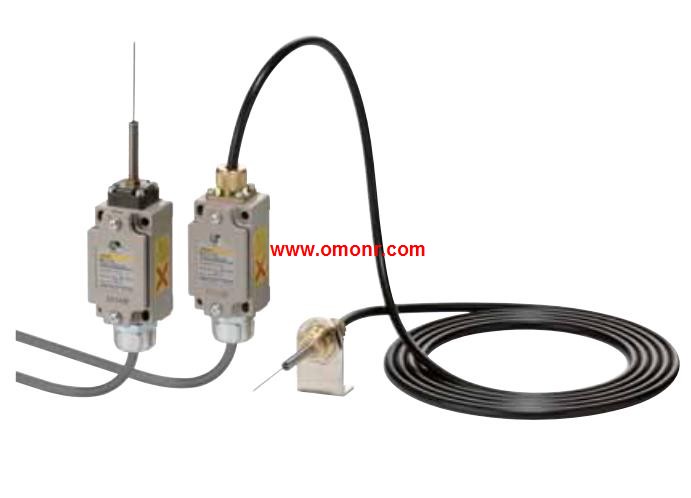

NL Series Limit Touch Switch
NL Series Introduce |
NL Series Model |
NL Series Catalog / Manual / Instructions / Software download
NL Series Catalog / Manual / Instructions / Software download
OMRON NL Series Manual And Instructions
NL Series datasheetPDF datasheet
OMRON NL Series Product information and technical parameters：
Brand: OMRON
Name: Limit Touch Switch
Model: NL Series
Object Actuates Switch and Turns.
Built-in Monitor Indicator ON.
Instantaneous operation upon contact with extremely.
limited hysteresis for high-precision position detection.
Detects minute displacement or lightweight objects with.
minimal operating force.
Built-in LED indicator ensures easy operation monitoring.
DC models provide versatile functions in combination.
with the S3D2 Sensor Controller.
