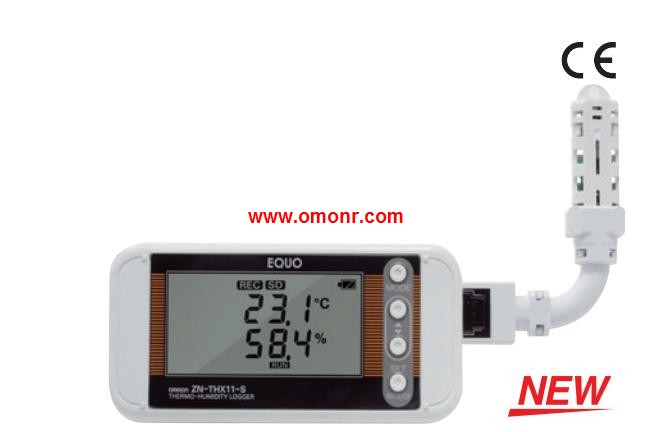

ZN-THX11-S/ZN-THS-S Series Next-Generation Production Environment Sensors

OMRON ZN-THX11-S/ZN-THS-S Series Manual And Instructions
ZN-THX11-S/ZN-THS-S Series datasheetPDF datasheet

OMRON ZN-THX11-S/ZN-THS-S Series Product information and technical parameters:
Brand: OMRON
Name: Next-Generation Production Environment Sensors
Model: ZN-THX11-S/ZN-THS-S Series
Easy temperature and humidity control with an SD Card.

Item: Sensor head 1.5 m type.
Easy temperature and humidity control with an SD Card. Applicable circuits: Single-phase, 2-wire: 100 to 480 VAC;
Single-phase, 3-wire: 100/200 VAC; Three-phase, 3-wire: 100 to 480 VAC;
Three-phase, 4-wire: 85 to 277 VAC.
Power supply voltage (shared): 100 to 240 VAC ZN-THX11-S/ZN-THS-S Series.
Dimensions: 96 × 48 × 93 (H × W × D).
Communications: RS-485.
Protocol: CompoWay/F, 31 nodes; Modbus, 99 nodes,
(Both are supported by the same model ZN-THX11-S/ZN-THS-S Series)
High-performance Power Monitor Suitable for On-panel Mounting and Display.
Assists Energy-saving Analysis.
Energy classification for wasted standby and stopped power.
(Classification based on external inputs is also supported.)
Power and current can be measured simultaneously ZN-THX11-S/ZN-THS-S Series.
Measurement of flow rates with a pulse conversion function.
Simple temperature measurements with Temperature Sensor included in the Unit.
High-precision Measurements.
Measurement of generated power (regenerative power),
leading reactive power, lagging reactive power, and consumed power.
Power measurements on the primary side of inverters,
which are widely used to save energy ZN-THX11-S/ZN-THS-S Series.
Automatic range switching for accurate measurement of standby and stopped power.
Energy-saving Functions.
Conversion to monetary cost. (Also used for classified standby and stopped power.)
Alarm outputs can be selected for active power, reactive power,
regenerative power, current, voltage, or power factor.
The Power Monitor can log measurement data and supports Modbus communications.
Installation and Settings.
Direct measurement of three-phase, four-wire, 400-V line voltage.
Simple measurements without voltage wiring.
Incorrect voltage wiring detection. Appearance: Sensor head: 1 ZN-THX11-S/ZN-THS-S Series. 5 m type.
Temperature: Measurement range, –25 to 60°C;
Measurement precision, ±0.3°C (at 25°C); Resolution, 0.1°C.
Relative humidity: Measurement range, 0 to 99%;
Measurement precision, ±2.5% (at 25°C, 10 to 85%); RResolution, 0 ZN-THX11-S/ZN-THS-S Series. 1%.
Weight (packaged): Approx. 300 g.
Accessories: Mounting screw (M3 x 8) x 1.
Easy temperature and humidity control with an SD Card.
