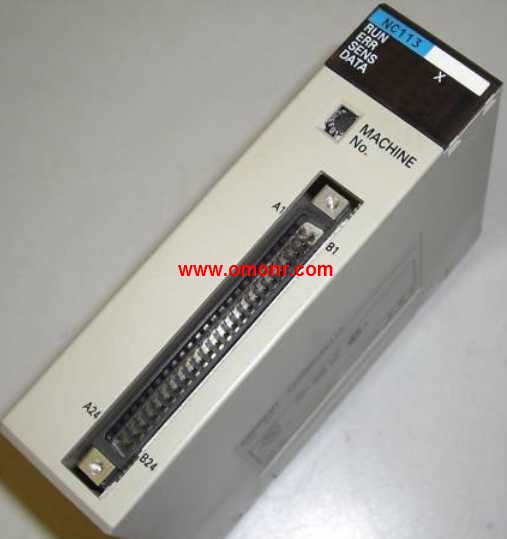

C200HW-NC113 Position Control Module
OMRON C200HW-NC113 Manual And Instructions
C200HW-NC113 OPERATION MANUAL
OMRON C200HW-NC113 Product information and technical parameters：
Brand: OMRON
Name: Position Control Module
Model: C200HW-NC113
Name: Position Control Module.
Model: C200HW-NC113.
Control method: Open-loop, automatic trapezoid acceleration/deceleration.
Control output sig-nals: Pulse-train outputs.
Controlled axes: 1.
