>> C200HW-NC413 Position Control Module

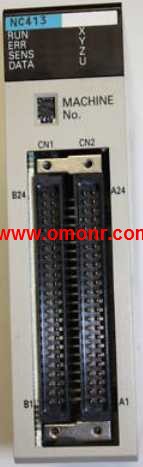

C200HW-NC413 Position Control Module
OMRON C200HW-NC413 Manual And Instructions
C200HW-NC413 OPERATION MANUAL
OMRON C200HW-NC413 Product information and technical parameters：
Brand: OMRON
Name: Position Control Module
Model: C200HW-NC413
Name: Position Control Module.
Model: C200HW-NC413.
Control method: Open-loop, automatic trapezoid acceleration/deceleration.
Control output sig-nals: Pulse-train outputs.
Controlled axes: 4.
...More relevant models >>>>
