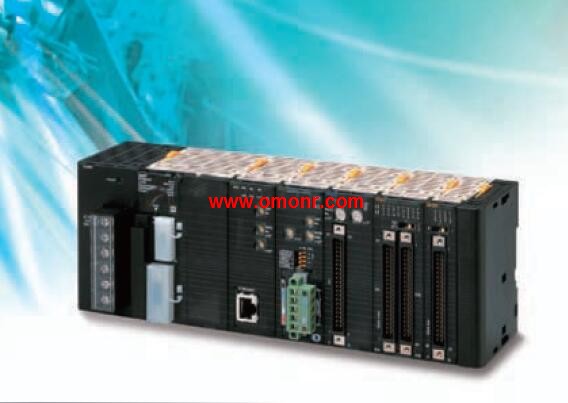

CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series Output Units

I/O capacity/Mountable Units(Expansion Racks): 1, 280 points/40 Units (3 Expansion Racks max.).
CJ1G-CPU44H Program capacity: 30K steps.
CPU Unit CJ1G-CPU44H Data memory capacity: 64K words(DM: 32K words, EM: 32K words × 1 bank).Unit type: CJ1 Basic I/O Units.
Product name: DC Input Units.
Specifications: I/O points, 32 inputs(High speed);
Input voltage and current: 24 VDC, 4 CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series 1 mA;
Commons, 16 points, 1 common; External connection,
MIL connector; No. of words allocated, 2 word.
Current consumption: 5V, 0.20A; 24V, --.
Standards: N, L, CE.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications.
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memory in the CPU Unit CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput.
Unit type: CJ1 Special I/O Units.
Product name: Analog Output Unit.
I/O points: 4 outputs;
Signal range selection:
Set separately for each output.
Signal range, Resolution: 1 to 5V(1/10,000),
0 to 10V(1/20,000), and -10 to 10V(1/40,000) CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series.
Conversion period: 20 μs/ 1 point,
25 μs/ 2 points, 30 μs/ 3 points,
35 μs/ 4 points The Direct conver sion is provided.
Accuracy at ambient temperature of 25°C:
±0.3% of F.S.
External connection: Removable terminal block.
External power supply: --.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.40A; 24V, --.
Standards: UC1, CE.
Consistent Microsecond Throughput:
Models with Direct Conversion Join the Lineup.
Analog Input Units for converting analog input,
signals into binary data.
Analog Output Units for converting binary ,
data into analog output signals. Unit type: CJ1 Special I/O Units.
Product name: Analog Output Unit.
I/O points: 2 outputs;
Signal range selection:
Set separately for each output.
Signal range, Resolution: 1 to 5 V,
0 to 5 V, 0 to 10 V, -10 to 10 V,
4 to 20 mA; 1/4,00.
Conversion period: 1 ms/point.
Accuracy at ambient temperature of 25°C:
Voltage: ±0.3% of F.S. Current: ±0.5% of F.S.
External connection: Removable terminal block.
External power supply: 24 VDC +10% -15%, 140mA max. CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.12A; 24V, 0.14*3.
Standards: UC1, N, L, CE.
Consistent Microsecond Throughput:
Models with Direct Conversion Join the Lineup.
Anaalog Input Units for converting analog input,
signals into binary data CJ1W-OC Series/CJ1W-OA Series/CJ1W-OD Series.
Analog Output Units for converting binary ,
data into analog output signals.
