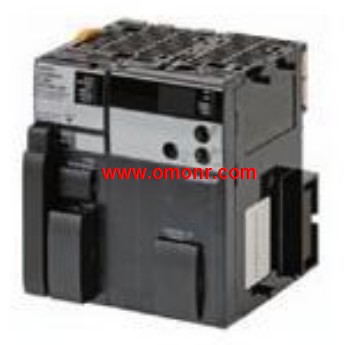

CJ2H-CPU66-EIP Programmable Controllers

OMRON Programmable ControllersCJ2H-CPU66-EIP

CJ2H-CPU66-EIP Introduce | CJ2H-CPU66-EIP Catalog / Manual / Instructions / Software download

OMRON CJ2H-CPU66-EIP Manual And Instructions
CJ2H-CPU66-EIP datasheetPDF datasheet
CJ2H-CPU66-EIP OPERATION MANUAL
CJ2H-CPU66-EIP OPERATION MANUAL
CJ2H-CPU66-EIP PROGRAMMING MANUAL
CJ2H-CPU66-EIP INSTRUCTIONS REFERENCE MANUAL
CJ2H-CPU66-EIP Communications CommandsREFERENCE MANUAL
CJ2H-CPU66-EIP INSTRUCTIONS REFERENCE MANUAL
CJ2H-CPU66-EIP SoftwareUSER'S MANUAL
CJ2H-CPU66-EIP HardwareUSER'S MANUAL
CJ2H-CPU66-EIP Safety Precautions

OMRON CJ2H-CPU66-EIP Product information and technical parameters：
Brand: OMRON
Name: Programmable Controllers
Model: CJ2H-CPU66-EIP
Product name: CJ2H (Built-in EtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 150K steps; Data memory capacity,
352K words(DM: 32K words, EM: 32K words × 10 banks);
LD nstructio execution time, 0.016 μs.
Current consumption(A): 5V,0.82(See note.); 24v, --.
Standards: UC1, N, L, CE.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advanced machine.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors.

Product name: CJ2M CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
5K steps;Data memorycapacity, 64K words,
(DM: 32K words, EM: 32K words ×1 bank);
LD nstruction execution time, 0. 04 μs;
EtherNet/IP function: --;
Option board slot: -- CJ2H-CPU66-EIP.
Current consumption (A): 5V, 0. 7(See note CJ2H-CPU66-EIP );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU. Product name: Transistor Output Units CJ2H-CPU66-EIP.
Specifications: Output type, Sourcing;
I/O points, 16 outputs;
Maximum switching capacity, 24VDC,
0.5A Short-circuit protection;
Commons, 16 points, 1 common;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0.10A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications CJ2H-CPU66-EIP.
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput. Unit type: CJ1 Basic I/O Units.
Product name: Relay Contact Output Units.
Specifications: Output type , --;
I/O points, 16 inputs;
Maximum switching capacity, 250VAC/24VDC, 2A;
Commons, 16 points, 1 common;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumptioon: 5V, 0 CJ2H-CPU66-EIP. 11A; 24V, 0.096A max.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications.
These Output Units receive the ,
results of output instructions ,
from the CPU UUnit and perform ON/OFF,
control for external devices CJ2H-CPU66-EIP.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput.
