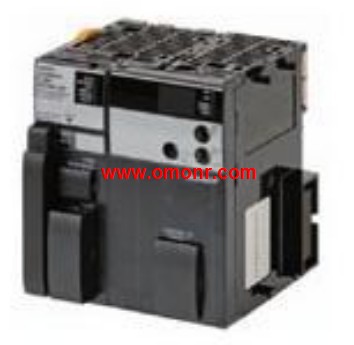

CJ2H-CPU67-EIP Programmable Controllers

OMRON Programmable ControllersCJ2H-CPU67-EIP

CJ2H-CPU67-EIP Introduce | CJ2H-CPU67-EIP Catalog / Manual / Instructions / Software download

OMRON CJ2H-CPU67-EIP Manual And Instructions
CJ2H-CPU67-EIP datasheetPDF datasheet
CJ2H-CPU67-EIP OPERATION MANUAL
CJ2H-CPU67-EIP OPERATION MANUAL
CJ2H-CPU67-EIP PROGRAMMING MANUAL
CJ2H-CPU67-EIP INSTRUCTIONS REFERENCE MANUAL
CJ2H-CPU67-EIP Communications CommandsREFERENCE MANUAL
CJ2H-CPU67-EIP INSTRUCTIONS REFERENCE MANUAL
CJ2H-CPU67-EIP SoftwareUSER'S MANUAL
CJ2H-CPU67-EIP HardwareUSER'S MANUAL
CJ2H-CPU67-EIP Safety Precautions

OMRON CJ2H-CPU67-EIP Product information and technical parameters：
Brand: OMRON
Name: Programmable Controllers
Model: CJ2H-CPU67-EIP
Product name: CJ2H (Built-in EtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 250K steps; Data memory capacity,
512K words(DM: 32K words, EM: 32K words × 15 banks);
LD nstructio execution time, 0.016 μs.
Current consumption(A): 5V,0.82(See note.); 24v, --.
Standards: UC1, N, L, CE.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advanced machine.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors.

Unit type: CJ1 CPU Bus Units.
Product Name: Position Control,
Units with EtherCAT interface.
Specifications: Control output interface,
Control commands executed by,
EtherCAT communications.
Positioning functions: Memory operation,
Direct operation by ladder programming;
No. of axes: 2 axes.
No CJ2H-CPU67-EIP. of unit numbers allocated: 1.
Current consumption : 5V, 0.46A; 24V,--.
Standards: UC1, CE CJ2H-CPU67-EIP
Preeminent control performance and,
easy operation feature of EtherCAT,
improve the production efficiency.
The EtherCAT communications with,
100Mbps baud rate enables fast,
and accurate position control.
A wide range of position control,
functions are available with,
this position control unit CJ2H-CPU67-EIP.
Product name: CJ2M (Built-inEtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
5K steps;Data memorycapacity, 64K words,
(DM: 32K words, EM: 32K words ×1 bank);
LD nstruction execution time, 0. 04 μs;
EtherNet/IP function: YES;
Option board slot: YES.
Current consumption (A): 5V, 0 CJ2H-CPU67-EIP. 7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU. Unit classification: CJ1 Special I/O Units.
name: Position control unit.
Specifications; Control method/Control,
output interface:Open-loop control by pulse,
train output/Open-collector output;
Number of control axes : 4 axes.
No. of unit numbers allocated: 2.

Current consumption: 5V, 0 CJ2H-CPU67-EIP. 36A; 24V, --.
Standards: UC1, CE.
High-speed, High-precision positioning,
with 1, 2, or 4 axes.
Versatile functions and superb performance,
enable the construction of compact,
high-performance machiines CJ2H-CPU67-EIP.
With its ultra-compact size of 31 × 90mm (W×H),
this highly space-efficient Position Control Unit,
(PCU) enables up to 4 axes of motor control.
