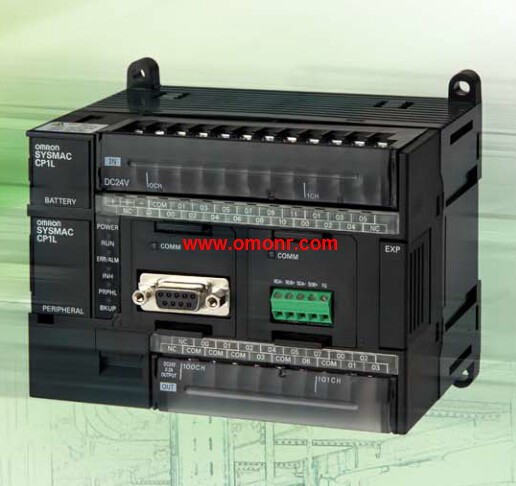

CP1L-EL20DR-D CP1L CPU Unit
OMRON CP1L-EL20DR-D Manual And Instructions
CP1L-EL20DR-D datasheetPDF datasheet
CP1L-EL20DR-D OPERATION MANUAL
CP1L-EL20DR-D REFERENCE MANUAL
CP1L-EL20DR-D Communications CommandsREFERENCE MANUAL
OMRON CP1L-EL20DR-D Product information and technical parameters：
Brand: OMRON
Name: CP1L CPU Unit
Model: CP1L-EL20DR-D
CPU Unit: CP1L-EL CPU Units with 20 Points.
Specifications: CPU type, Memory capacity: 5K steps
High-speed counters: 100 kHz, 4 axes Pulse outputs:
100 kHz, 2 axes (Models with transistor outputs only);
Power supply, DC power supply; Output method, Relay output;
Inputs, 12; Output, 8.
Standards: CE.
High Performing Programmable Controller with Embedded Ethernet.
"CP1L-EM" and "CP1L-EL" has a standard-feature Ethernet port.
"CP1L-M" and "CP1L-L" has a standard-feature peripheral USB port.
Function blocks (FB) allow you to build up modular structure and,
programming of ladder diagrams.
