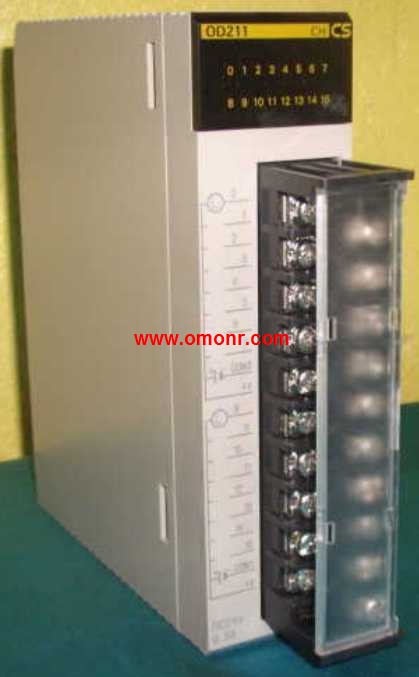

CS1W-OD211 Programmable Controllers

I/O bits: 1, 280 (Expan-sion Racks: 3).
Program capacity: 30K steps.
Data memory capacity: 64K words (DM: 32K words, EM: 32K words ×1 bank)Name: I/O Control Unit.
Specifications: Applicable systems,
Duplex CPU, Dual I/O Expansion System only;
Duplexing, Supported;
Online Replacement, Supported;
Mounting Backplane, Expansion Backplane;
Connecting Cable, CS1W-CN@@3,
CS-series Connecting Cable CS1W-OD211 CS1W-OD211
Current consumption: 5V system, 0.20A;
26V system, --.
Standards: UC1, CE.
Redundant CPU Units , Power Supply Units ,
Communications Units ,
and Expansion I/O Cables. Unit type: CS1 CPU Bus Unit.
Product name:SPU Unit,
(High-speed Data Storage Unit).
Specifications: PC Card slot,
1 PC Card Type II slot Insert an,
OMRON HMC-EF@@@ to use the Memory Card;
Ethernet (LAN) port, 1 port(10/100BASE-TX) CS1W-OD211.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.56A; 26V, --.
Standards: UC1, CE.
High-speed Collection of System Data.
The CPU Unit can collect large amounts,
of process data, operation data,
inspection data, and other controlled system,
data quickly and automatically save the data,
in external storage media as CSV files CS1W-OD211. I/O bits: 5, 120 (Expan-sion Racks: 7).
Program capacity: 60K steps.
Data memory capacity: 128K words (DM: 32K words, EM: 32K words ×3 banks).Unit type: CS1 Special analog I/O Units.
Product name: Analog Output Units.
Specifications: I/O points, 8 outputs;
Signal range selection,
Set separately for each input;
Signal range, 4 to 20 mA;
Resolution, 1/4000 ;
Conversion speed, 1 s/point.
Externa connection, Removable erminal block.
Current consumption: 5V, 0.13A; 26V, 0.25A.
Standards: UC1, N, CE.
For Various Analog I/Os.
Analog Input Units for converting,
analog input signals into binary data.
Analog Output Units for converting ,
binary data into analog output signals. Unit type: CS1 CPU Bus Unit.
Product name:EtherNet/IP Unit.
Specifications: Communications,
cable, Shielded twisted-pair(STP),
cable Categories: 100 Ω at 5, 5e;
Communications functions, Tag Data Link,
Functions, Message Communications Functions;
Units per CPU Unit, 8 max.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.41A; 26V, --.
Standards: UC1, N, L, CE.
Introducing the New EtherNet/IP Unit.
More Than 180,000 Words of Tag,
Data Link Capacity!
EtherNet/IP is an industrial multivendor,
network that uses Ethernet.
Managed by the ODVA (OOpen DeviceNet Vendors,
Association), it has open standards and is used,
with a wide range of industrial devices CS1W-OD211.
The EtherNet/IP Unit supports tag data links to,
enable sharing data between devices at Ethernet,
nodes and a message sservice for sending and,
receiving data when required CS1W-OD211.
The EtherNet/IP Unit supports the same FINS/UDP,
and FINS/TCP functionality as Ethernet Units.
