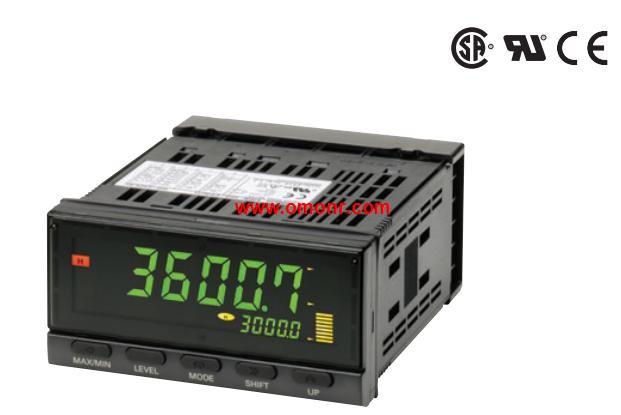

K3HB-RNB-A AC100-240 Rotating pulse meter
K3HB-RNB-A AC100-240 Introduce |
K3HB-RNB-A AC100-240 Catalog / Manual / Instructions / Software download
OMRON K3HB-RNB-A AC100-240 Manual And Instructions
K3HB-RNB-A AC100-240 datasheetPDF datasheet
OMRON K3HB-RNB-A AC100-240 Product information and technical parameters：
Brand: OMRON
Name: Rotating pulse meter
Model: K3HB-RNB-A AC100-240
Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (S-TMR, HOLD, RESET) is equipped with.
External power 80mA DC12V.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
Digital rotating pulse meter with high speed measurement for 50kHz.
Action determine the color, can switch the green / Red 2 kinds of color display.
Measurement of 50kHz high speed pulse.
Rotary encoder and a variety of ON/OFF pulse signals, the most up to 50kHz of high-speed pulse measurement.
Rotation measurement of high speed rotating objects can be carried out
