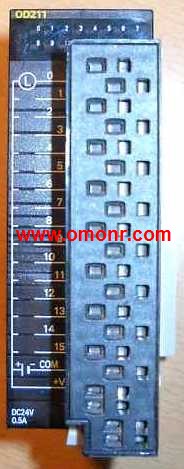

>> CJ1W-OD211 Output Units
CJ1W-OD211 Output Units
OMRON CJ1W-OD211 Manual And Instructions
CJ1W-OD211 datasheetPDF datasheet
CJ1W-OD211 HardwareOPERATION MANUAL
OMRON CJ1W-OD211 Product information and technical parameters：
Brand: OMRON
Name: Output Units
Model: CJ1W-OD211
Unit type: CJ1 Basic I/O Units.
Product name: Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 16 outputs;
Maximum switching capacity, 12 to 24VDC, 0.5A;
Commons, 16 points, 1 common;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0.10A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications.
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput.
