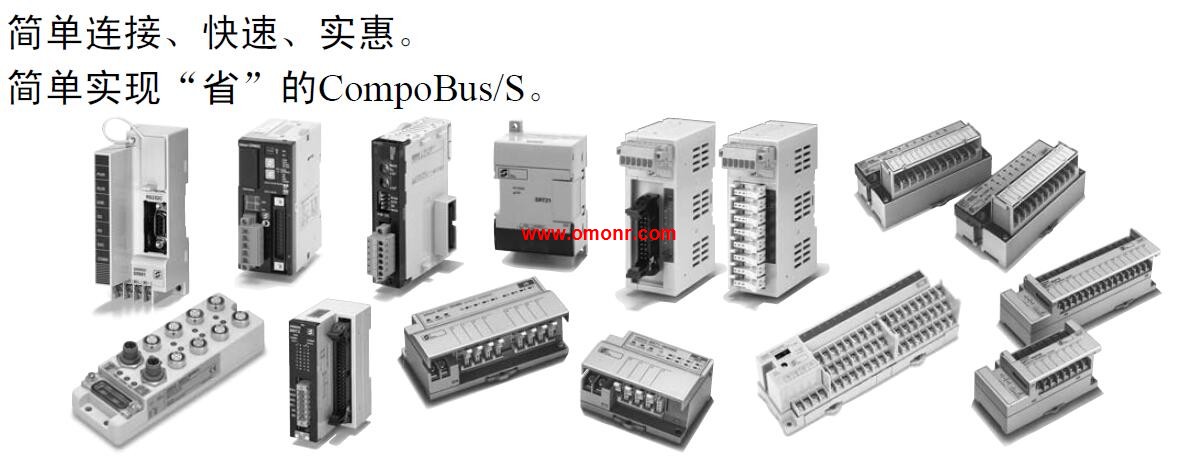

SRT2-OD16T Transistor Remote I/O Terminals with 3-tier Terminal Block

OMRON Transistor Remote I/O Terminals with 3-tier Terminal BlockSRT2-OD16T

SRT2-OD16T Introduce | SRT2-OD16T Catalog / Manual / Instructions / Software download

OMRON SRT2-OD16T Manual And Instructions
SRT2-OD16T datasheetPDF datasheet
SRT2-OD16T SETUP MANUAL
SRT2-OD16T User's Manual

OMRON SRT2-OD16T Product information and technical parameters：
Brand: OMRON
Name: Transistor Remote I/O Terminals with 3-tier Terminal Block
Model: SRT2-OD16T
I/O classification: Digital output.
Internal I/O circuit common: NPN (- common).
I/O points: 16.
I/O connection method: M3 terminal block.
Models with 3-tier Terminals (16 Points),
Added to the Remote I/O Terminal Series.
Six Models are Available Depending on the,
NPN or PNP Configuration, Input Points,
I/O Points, or Output Points.
Incorporates easy-to-wire terminals each,
connecting to a single wire.
Reduces designing and wiring effort.
Incorporates a removable circuit block of cassette construction.

Specifications: I/O;
PNP (input: - common, output: + common);
Input: 8 points/Output: 8 points.
I/O connections: M3 Screw terminals.
Rated internal circuit power supply voltage:
Supplied from the communications connector.
Rated I/O power supply voltage: 24 VDC.
Allows I/O Expansion with Transistor Terminals SRT2-OD16T.
Wide variety of data, such as maintenance system data,
can be collected without affecting the productivity,
of the control system SRT2-OD16T
Valuable information can be collected,
and managed through the network, including information,
on the communications power supply.
voltage levels, Unit wear and tear,
and equipment operating information.
Expansion via Expansion I/O Units.
With no communications baud rate settings,
required and detachable terminal blocks,
maintenance is easier SRT2-OD16T. Specifications: Outputs; PNP (+ common); 16 points.
I/O connections: MIL connector.
Rated internal circuit power supply voltage:
Supplied from the communications connector.
Rated I/O power supply voltage: 24 VDC.
Very Compact 16-/32-point Remote Terminals.
Used in combination with Interface,
Conversion Boards (e SRT2-OD16T. g., D-Sub) to,
connect to a wide range of interfaces.
35 x 60 x 80 mm (W x D x H). Specifications: I/O; PNP (input: - common,
output: + common); 8 inputs/8 outputs.
I/O connections: Sensor connector.
Rated internal circuit power supply voltage:
Supplied from the communications connector.
Rated I/O power supply voltage:
Supplied from external source for outputs.
Includes Sensor Connector That Conforms to,
Industry Standards And Can Be Used to Connect.
Sensors with Pre-wired Cables without Using,
Special Tools.
Equipped with the standard Smart Slave,
functions that provide powerful.
preventative maintenance and,
troubleshooting capabilities.
Digital I/O Terminal compatible with,
industry-standard sensor connectors.
Connect sensors easily without special tools.
Reduce time required for wiring.
Load short-circuit detection. I/O classification: Output.
Internal I/O circuit common: PNP (+ common).
I/O points: 8.
Rated voltage: 24 VDC.
I/O rated voltage: 24 VDC.
Long-distance Communications Supportted by SRT2 Models,
(Long-distance/High-speed Communications Selection) SRT2-OD16T.
Ultra-compact at 80 x 48 x 50 (W x H x D) mm for,
4-point and 8-point terminals and 105 x 48 x 50,
(W x H x D) mm for 16-point terminals.
Two independent power supplies can be used,
because the I/O terminals are insulated from the internal circuits SRT2-OD16T.
DIN track mounting and screw mounting are both supported.
