>> EJ1G-EDUA-NFLK Modular Temperature Controller for Gradient Temperature Control

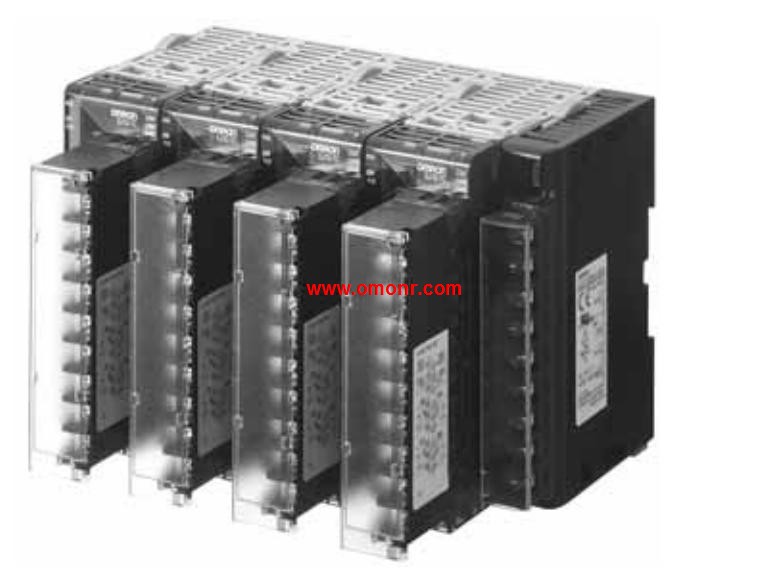

EJ1G-EDUA-NFLK Modular Temperature Controller for Gradient Temperature Control
OMRON EJ1G-EDUA-NFLK Manual And Instructions
EJ1G-EDUA-NFLK datasheetPDF datasheet
EJ1G-EDUA-NFLK OPERATION MANUAL
EJ1G-EDUA-NFLK User's Manual
EJ1G-EDUA-NFLK User's Manual
EJ1G-EDUA-NFLK INSTRUCTION sheet
OMRON EJ1G-EDUA-NFLK Product information and technical parameters：
Brand: OMRON
Name: Modular Temperature Controller for Gradient Temperature Control
Model: EJ1G-EDUA-NFLK
Name: End Unit(See note 1.).
Power supply voltage: 24 VDC.
No. of control points: None.
Control outputs 1 and 2: None.
Control outputs 3 and 4: None.
Auxiliary output: Transistor output: 2 points (sourcing).
Functions: Heater burnout alarm, None; Event inputs, None.
Communications functions: Port A, RS-485; Connector, Port A.
Input type: No input.
Terminal: M3 terminal.
Gradient Temperature Control to Achieve.
Consistent Layer Temperature.
Perform gradient temperature control ranging from 2 to 32 channels.
Perform 2-channel gradient temperature control for up to 16,
groups, or 32-channel gradient temperature control for up to 2 groups.
Set gradient temperature control or 2-PID control for each group.
Reduce design work for ladder programming with programless,
connections to Programmable Controllers. (The same feature,
as Standard-control EJ1 Models.).
Connect directly to the G3ZA Multi-channel Power Controller,
using optimum cycle control for high-accuracy control with minimal noise.
