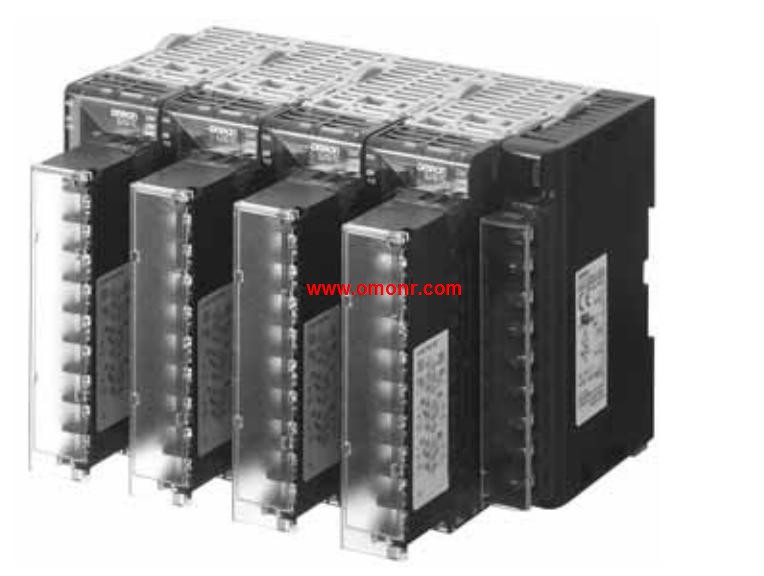

EJ1G-HFUA-NFLK Modular Temperature Controller for Gradient Temperature Control

OMRON Modular Temperature Controller for Gradient Temperature ControlEJ1G-HFUA-NFLK

EJ1G-HFUA-NFLK Introduce | EJ1G-HFUA-NFLK Catalog / Manual / Instructions / Software download

OMRON EJ1G-HFUA-NFLK Manual And Instructions
EJ1G-HFUA-NFLK datasheetPDF datasheet
EJ1G-HFUA-NFLK OPERATION MANUAL
EJ1G-HFUA-NFLK User's Manual
EJ1G-HFUA-NFLK User's Manual
EJ1G-HFUA-NFLK INSTRUCTION sheet

OMRON EJ1G-HFUA-NFLK Product information and technical parameters：
Brand: OMRON
Name: Modular Temperature Controller for Gradient Temperature Control
Model: EJ1G-HFUA-NFLK
Name: HFU (gradient temperature control) (See note 1.).
Power supply voltage: 24 VDC supplied from the End Unit.
No. of control points: None.
Control outputs 1 and 2: None.
Control outputs 3 and 4: None.
Auxiliary output: Transistor output: 4 points (sourcing).
Functions: Heater burnout alarm, None; Event inputs, 4.
Communications functions: From End Unit, Port A, RS-485; Port C, RS-485;
or RS-232C, selectable.
Input type: No input.
Terminal: M3 terminal .
Gradient Temperature Control to Achieve.
Consistent Layer Temperature.
Perform gradient temperature control ranging from 2 to 32 channels.
Perform 2-channel gradient temperature control for up to 16,
groups, or 32-channel gradient temperature control for up to 2 groups.
Set gradient temperature control or 2-PID control for each group.
Reduce design work for ladder programming with programless,
connections to Programmable Controllers. (The same feature,
as Standard-control EJ1 Models.).
Connect directly to the G3ZA Multi-channel Power Controller,
using optimum cycle control for high-accuracy control with minimal noise.

Control output: relay output.
Auxiliary output: 2 points.
Heating wire breakage, SSR fault detection function: single phase heater detection function.
Event input: -.
Communication: RS-485.
Terminal shape: screw terminal table type (main unit + terminal unit).
Power supply voltage: AC/DC24V.
DIN rail operation, high performance E5 / C series of the maintenance of the most suitable system connected with a touch screen /PLC and thermostat installation type EJ1G-HFUA-NFLK EJ1G-HFUA-NFLK
DIN 85mm * 22.5MM width depth guide installation type, housed in the control cabinet of the thin slender body.
The terminal platform can be easily replaced, and the maintenance performance is improved.
Through the 50ms high speed sampling, suitable for the use of high speed heating EJ1G-HFUA-NFLK.
Easy to connect with PLC through no program communication.
The use of communication adapter cable (sold separately) connected to the computer, without power supply connection
Set up。 It can be easily set by CX-Thermo (sold separately).
With auxiliary output (maximum 2 points), event input (maximum 1 points), the basic function is complete EJ1G-HFUA-NFLK.
The confirmation of a simple, eye-catching white PV display when starting or abnormal in the cabinet
(PV high 8.5mm). Ontology: basic.
Size: 48 x 96mm.
Type: 2 (input).
Control mode: 2 channel standard control /1 channel heating and cooling control /1 channel series control and other functions.
Output (control / transfer) points: 2 points (current + current).
Output (SUB) points: 2 points.
Event entry point: 4.
Serial communication: RS-485.
High speed, high precision and multiple input and output universal digital regulator,
Liquid crystal display device with high visibility 5 bit and 3 line.
The high speed sampling period is suitable for the operation of high speed response.
With a backlight liquid crystall display and the 3 display, can display the current value, the target value, the amount of operation EJ1G-HFUA-NFLK.
1 digital controller can be multi point control / series control / proportion control.
Standard is equipped with a variety of compuuting functions EJ1G-HFUA-NFLK.
Equipped with DeviceNet communication function.
Data setting and data monitoring can be performed by means of a communication program.
