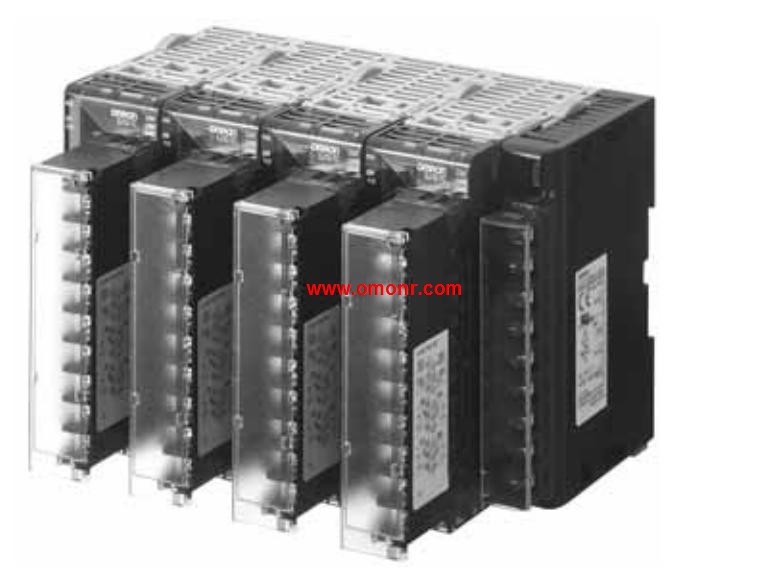

>> EJ1G-HFUA-NFL2 Modular Temperature Controller for Gradient Temperature Control
EJ1G-HFUA-NFL2 Modular Temperature Controller for Gradient Temperature Control
OMRON EJ1G-HFUA-NFL2 Manual And Instructions
EJ1G-HFUA-NFL2 datasheetPDF datasheet
EJ1G-HFUA-NFL2 OPERATION MANUAL
EJ1G-HFUA-NFL2 User's Manual
EJ1G-HFUA-NFL2 User's Manual
EJ1G-HFUA-NFL2 INSTRUCTION sheet
OMRON EJ1G-HFUA-NFL2 Product information and technical parameters：
Brand: OMRON
Name: Modular Temperature Controller for Gradient Temperature Control
Model: EJ1G-HFUA-NFL2
Name: HFU (gradient temperature control) (See note 1.).
Power supply voltage: 24 VDC supplied from the End Unit.
No. of control points: None.
Control outputs 1 and 2: None.
Control outputs 3 and 4: None.
Auxiliary output: Transistor output: 4 points (sourcing).
Functions: Heater burnout alarm, None; Event inputs, 4.
Communications functions: From End Unit, Port A, RS-485; Port C, RS-422.
Input type: No input.
Terminal: M3 terminal .
Gradient Temperature Control to Achieve.
Consistent Layer Temperature.
Perform gradient temperature control ranging from 2 to 32 channels.
Perform 2-channel gradient temperature control for up to 16,
groups, or 32-channel gradient temperature control for up to 2 groups.
Set gradient temperature control or 2-PID control for each group.
Reduce design work for ladder programming with programless,
connections to Programmable Controllers. (The same feature,
as Standard-control EJ1 Models.).
Connect directly to the G3ZA Multi-channel Power Controller,
using optimum cycle control for high-accuracy control with minimal noise.
